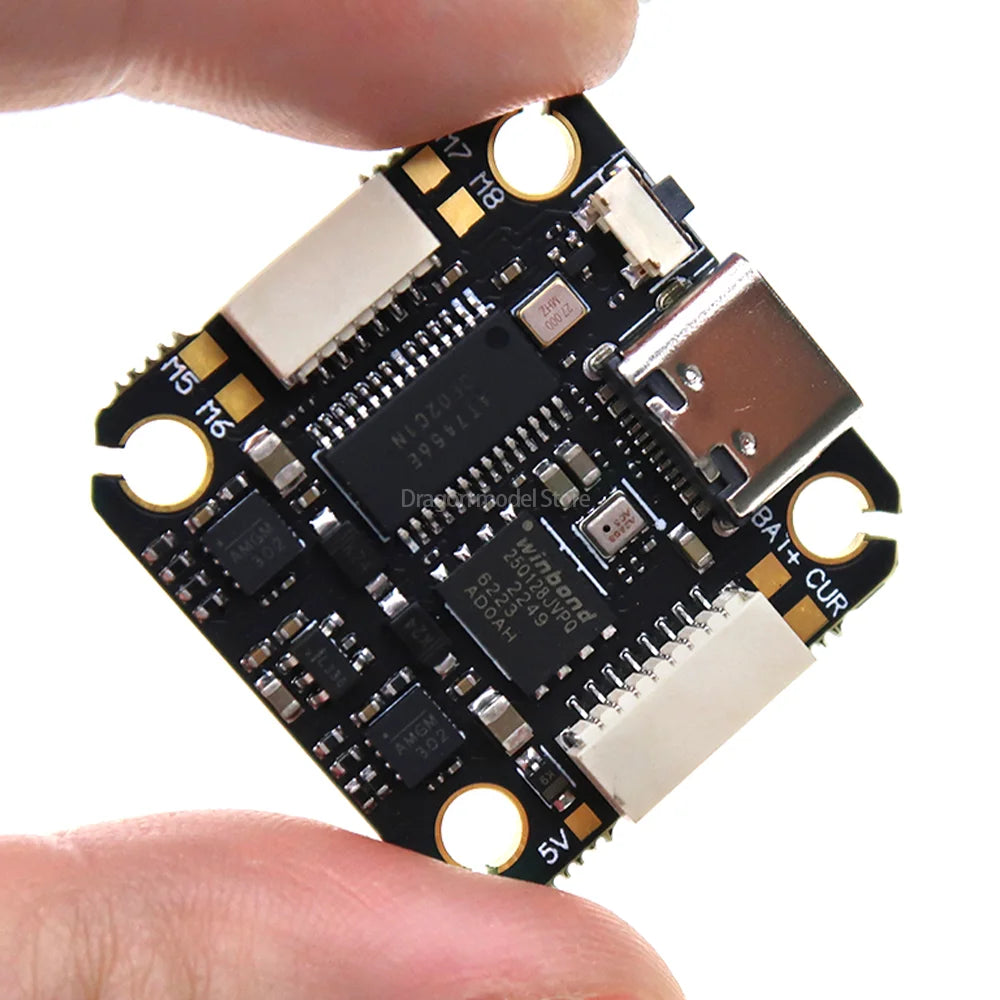

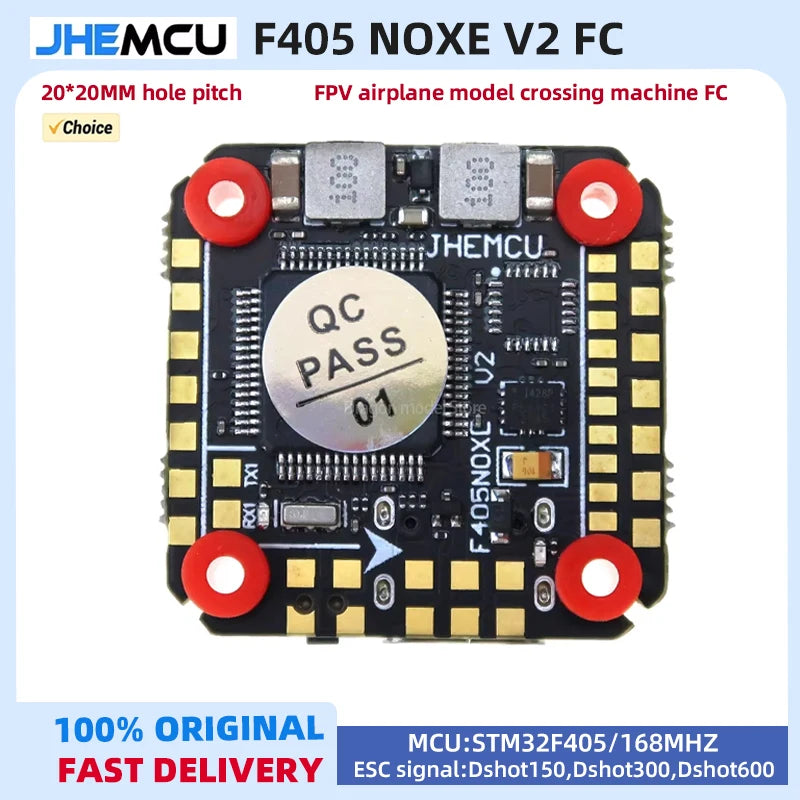

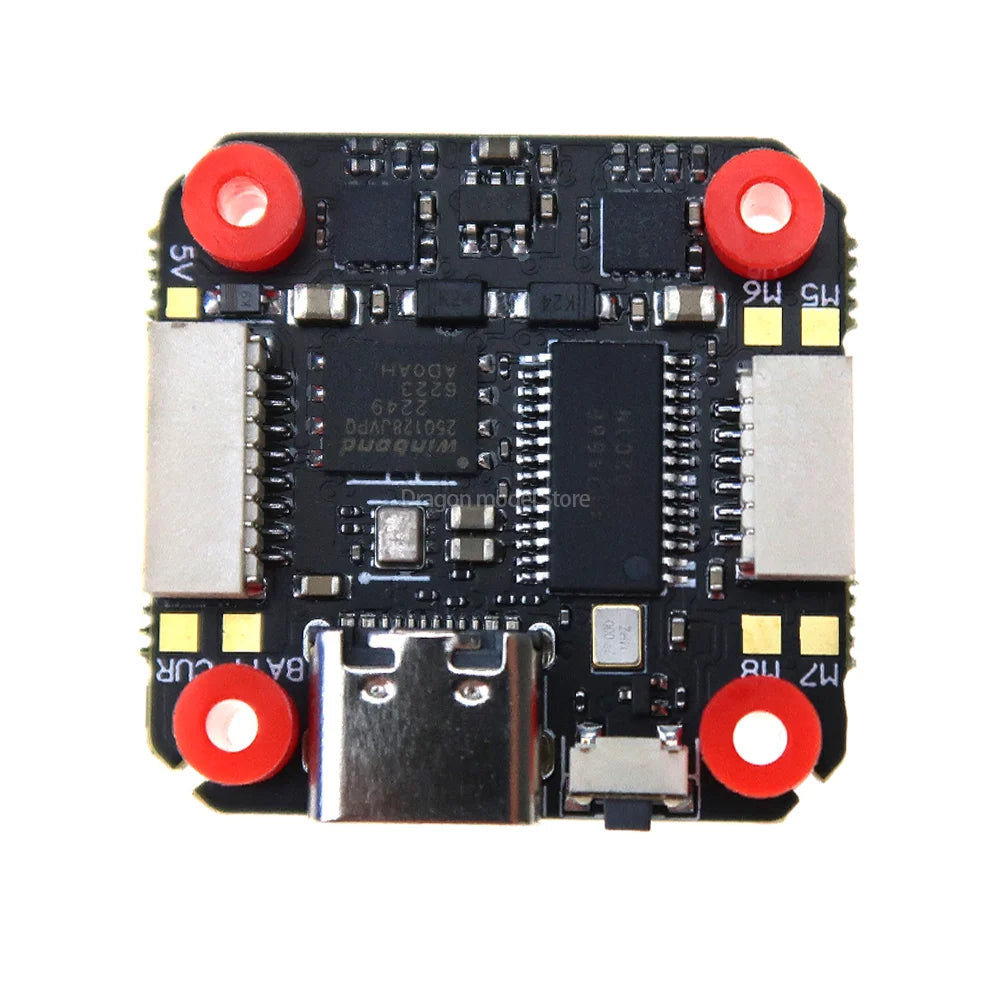

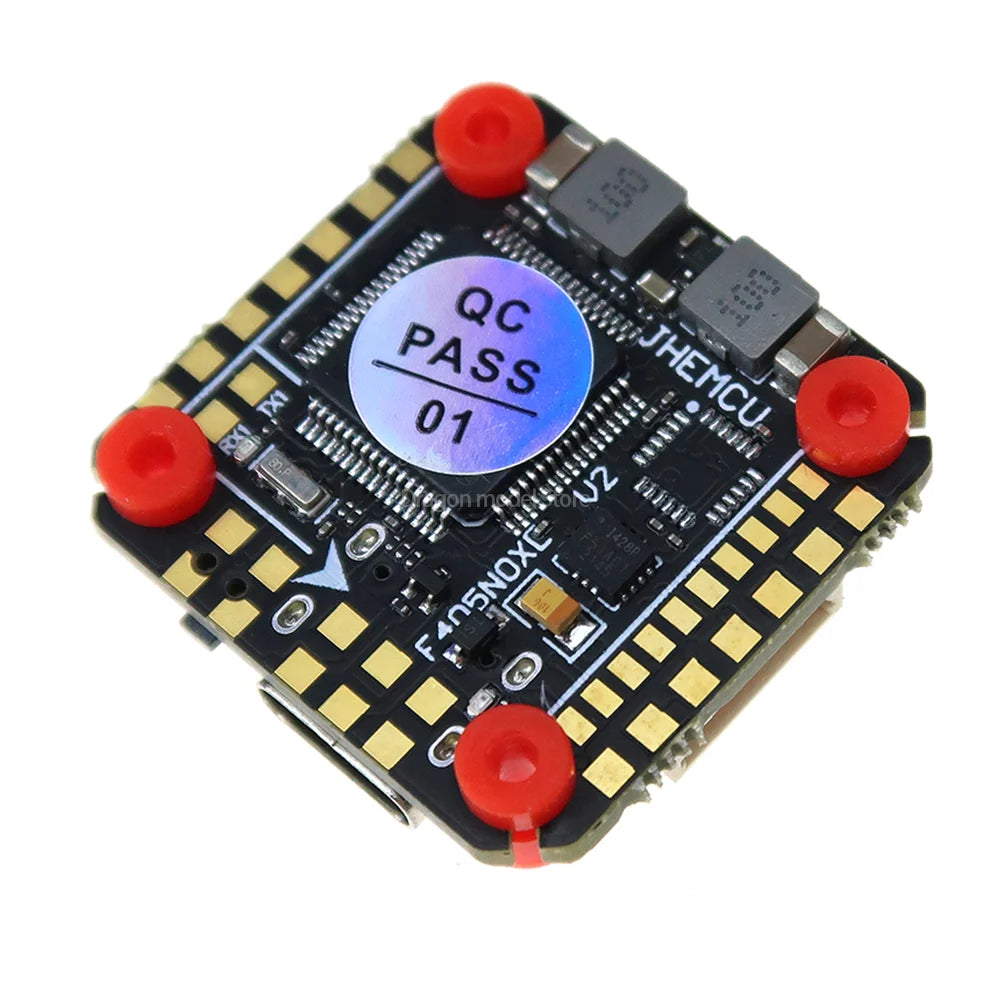

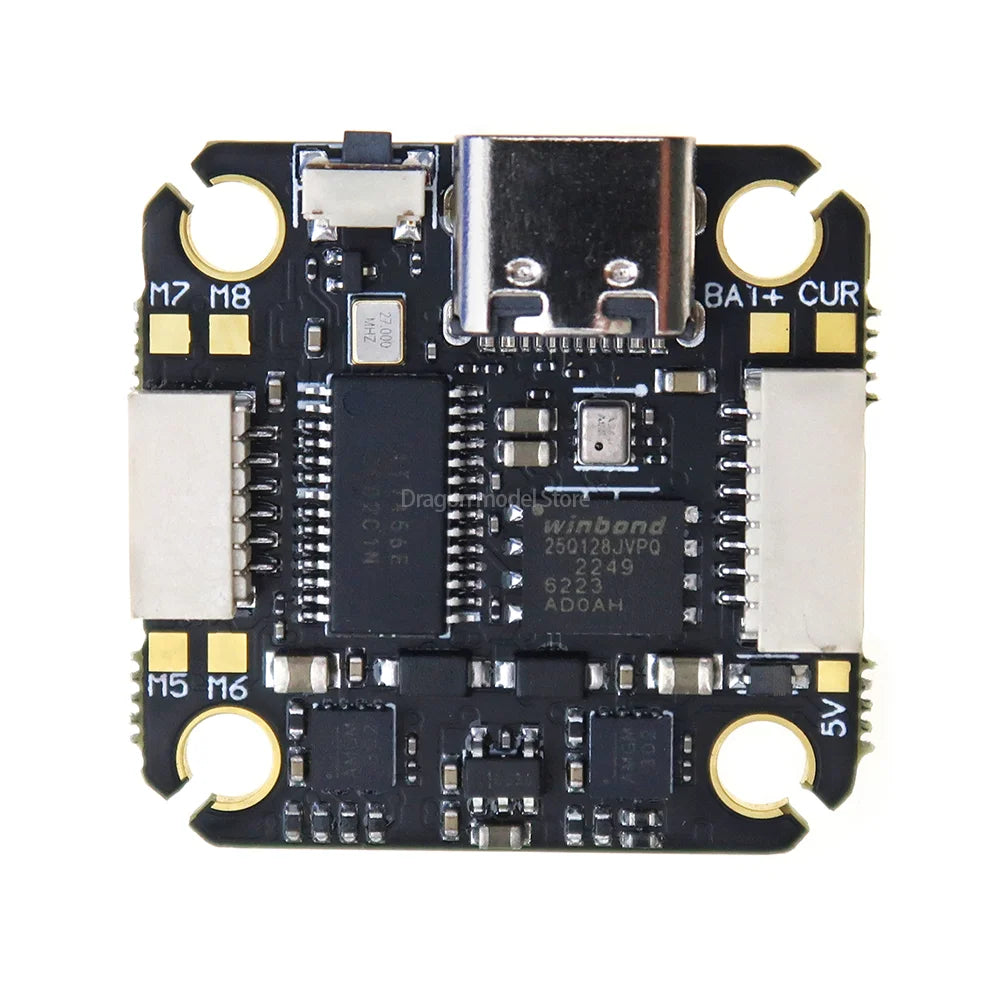

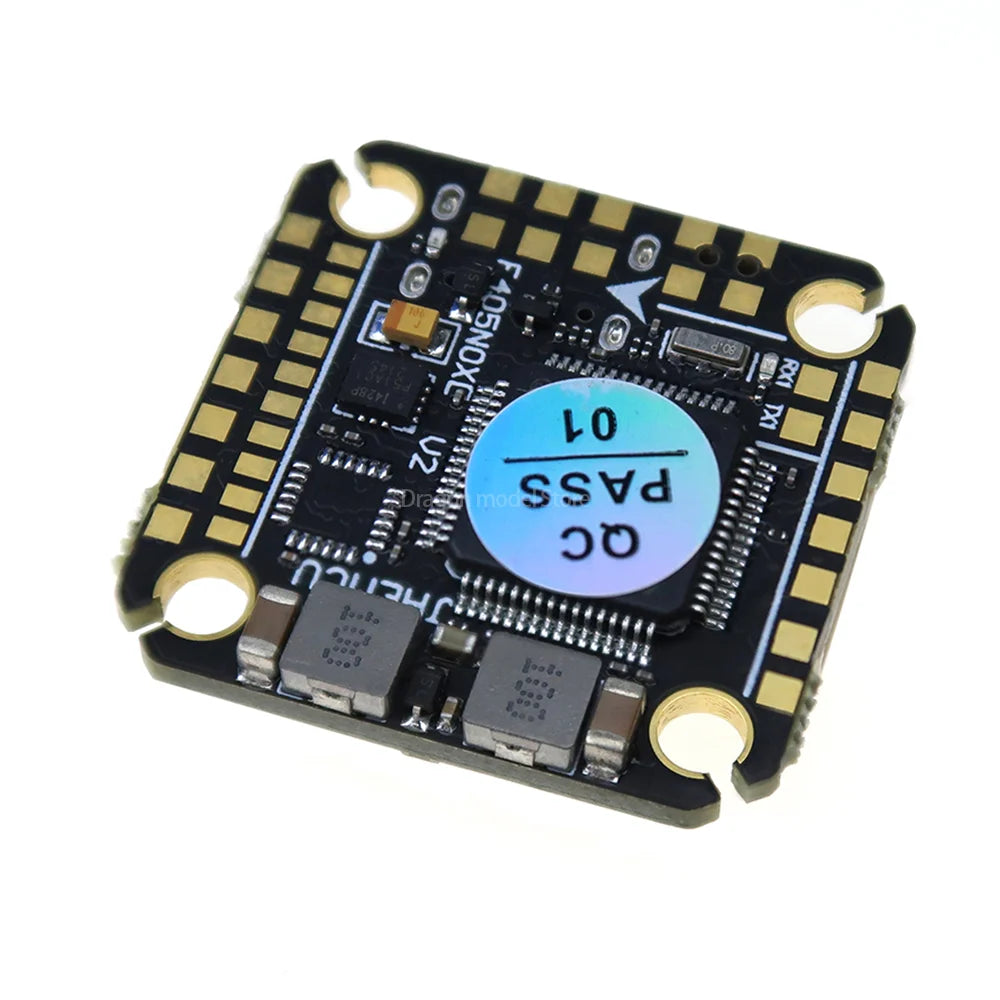

JHEMCU F405 NOXE V2 Flight Controller Baro OSD 16MB BlackBox 5V 10V Dual BEC 20X20mm 3-6S LIPO for FPV Freestyle Drone DIY Parts
JHEMCU F405 NOXE V2 Flight Controller Baro OSD 16MB BlackBox 5V 10V Dual BEC 20X20mm 3-6S LIPO for FPV Freestyle Drone DIY Parts
Couldn't load pickup availability
Ship 10 -15 days
Safe Payment
- 24/7 Support
Worldwide Ship
Trusted Partner
Return & refund
30-day guarantee
We understand that ordering internationally can feel like a risk. That's why we offer a 30-day guarantee on your purchase. If your item arrives damaged or isn't what you expected, you can easily request a return for a full refund within 30 days of receipt. Don't worry—we make the process simple and stress-free.
Shipping & Delivery
Processing Time: We ship your order within 1 business day after payment is confirmed.
Shipping From: Our warehouse is located in Yiwu City, Zhejiang Province, China.
Transit Time: Please allow 10-15 business days for delivery after shipment. Times may vary.
Carrier: We ship via USPS for reliable service to your door.
Tracking: Once your order ships, you will receive a confirmation email with your USPS tracking number. You can track your package directly on the USPS website or on our own order tracking page.
SPECIFICATIONS
Brand Name: JHEMCU
Choice: yes
For Vehicle Type: Airplanes
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: F405 NOXE V2
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Flight Controller
Recommend Age: 14+y
Remote Control Peripherals/Devices: Flight Controller
Use: Vehicles & Remote Control Toys
Model:F405 NOXE V2
MCU:STM32F405/168MHZ
IMU: ICM-42688-P/Gyro/Accel
OSD:AT7456E
Baro:YES
Blackbox:16MB
Input voltage:3S-6S(11.5V-26V)
5V-BEC:5V/2.5A ±0.1V
10V-BEC: 10V/2A ±0.1V
Receiver:ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS,DSM2,DSMX
GPS: YES
Compass: YES
HD O3: YES
USART: UART1,UART3,UART4,UART6
IIC:IIC1
Led_Strip:YES
Buzzer: 5V
ESC signal: Dshot150,Dshot300,Dshot600
USB: Micro USB
Current port:YES
Voltage sensor:YES
DFU button: YES
FC Firmware: betaflight_4.4.2 JHEF405PRO.HEX
Size: 27*27MM
Mounting Hole:20*20*3MM
Weight: 4.6g

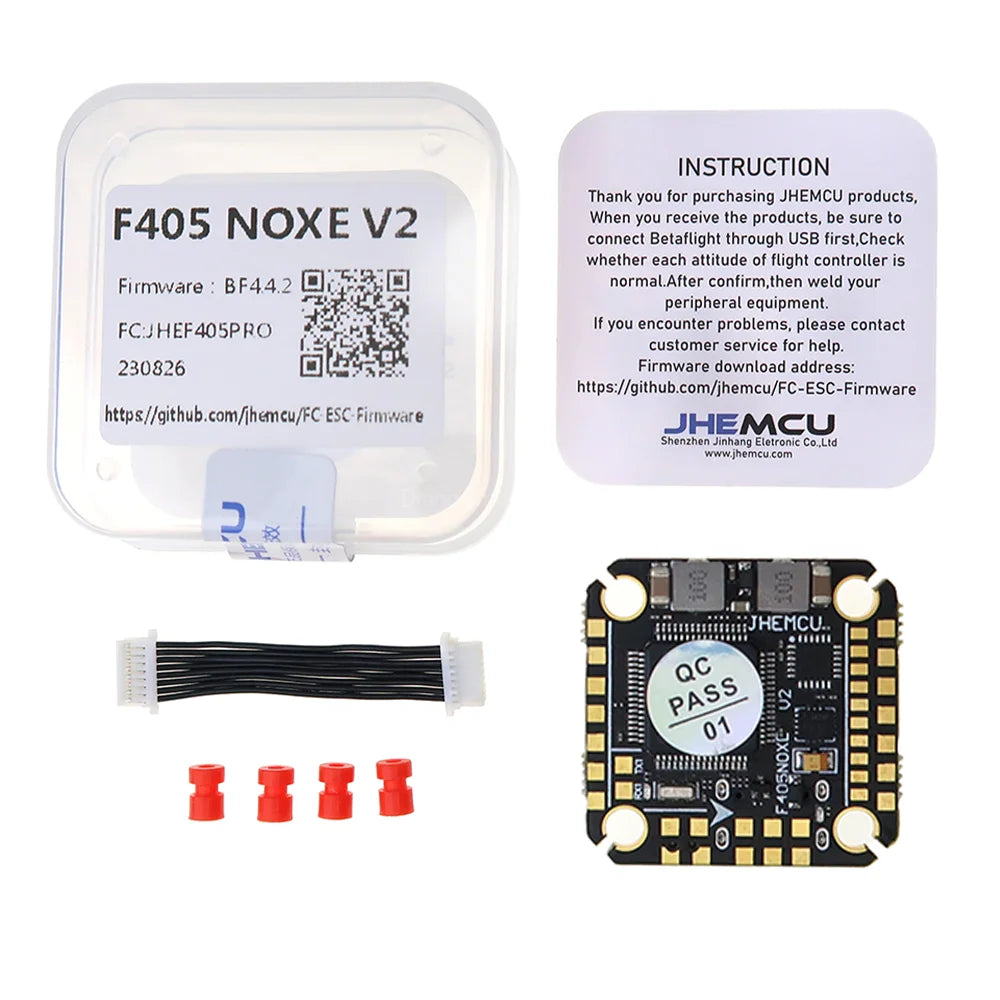

Packaging List:
M2 * 6.5MM shock absorber * 4
8P*1.0MM *1
