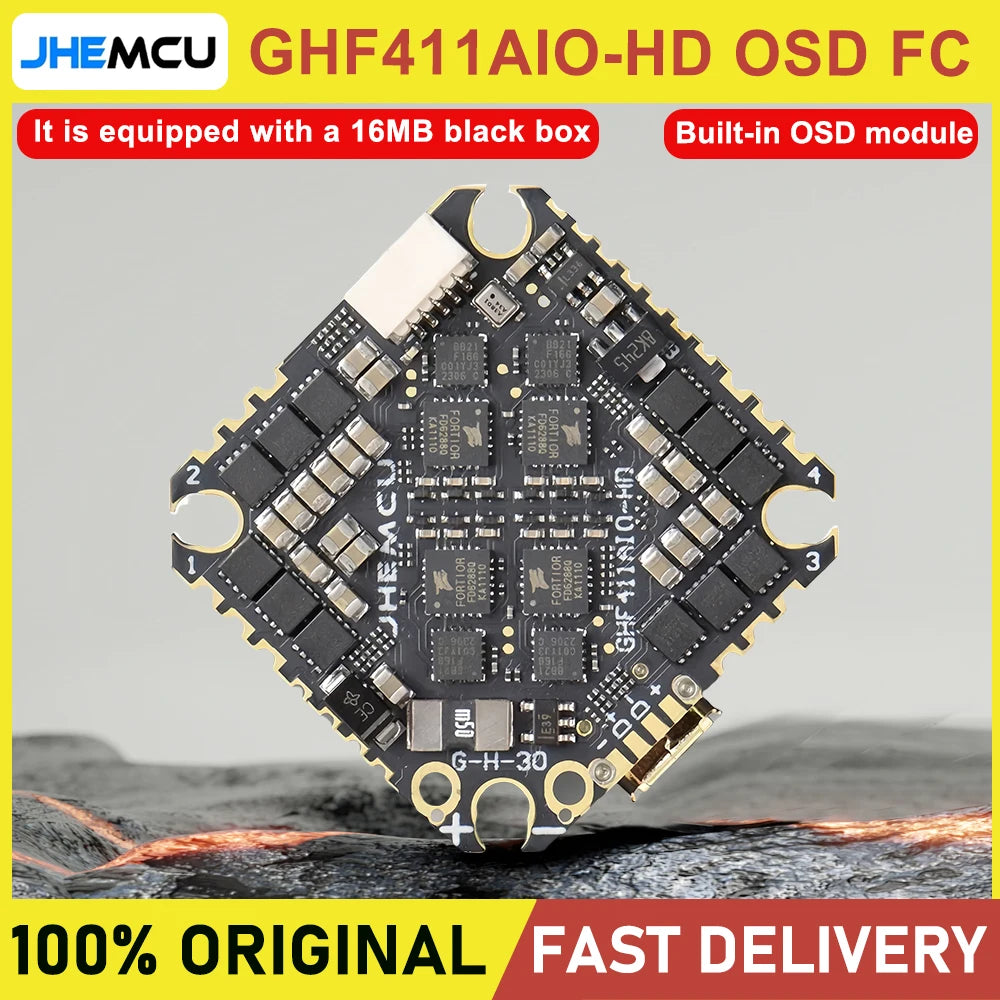

JHEMCU GHF411AIO-HD OSD Flight Controller BLheli_S 40A 3-6S 4in1 Brushless ESC for Toothpick RC FPV Racing Drone

JHEMCU GHF411AIO-HD OSD Flight Controller BLheli_S 40A 3-6S 4in1 Brushless ESC for Toothpick RC FPV Racing Drone

Regular price $55.82 USD
Sale price $55.82 USD Regular price $55.82 USD
Sale Sold out

Color: GHF411AIO-HD
Ships From: CHINA
  • Ship 10 -15 days
  • complet one Safe Payment
  • 24/7 Support
  • icon picture colory of earthplanet Worldwide Ship
  • an icon showing trusted partner with green color , crop it and make it the biggest size Trusted Partner
  • a color full icon for return and refundReturn & refund

We understand that ordering internationally can feel like a risk. That's why we offer a 30-day guarantee on your purchase. If your item arrives damaged or isn't what you expected, you can easily request a return for a full refund within 30 days of receipt. Don't worry—we make the process simple and stress-free.

Processing Time: We ship your order within 1 business day after payment is confirmed.

Shipping From: Our warehouse is located in Yiwu City, Zhejiang Province, China.

Transit Time: Please allow 10-15 business days for delivery after shipment. Times may vary.

Carrier: We ship via USPS for reliable service to your door.

Tracking: Once your order ships, you will receive a confirmation email with your USPS tracking number. You can track your package directly on the USPS website or on our own order tracking page.

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

For Vehicle Type: Airplanes

Hign-concerned Chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: GHF411AIO-HD

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: flight control

Recommend Age: 14+y

Use: Vehicles & Remote Control Toys

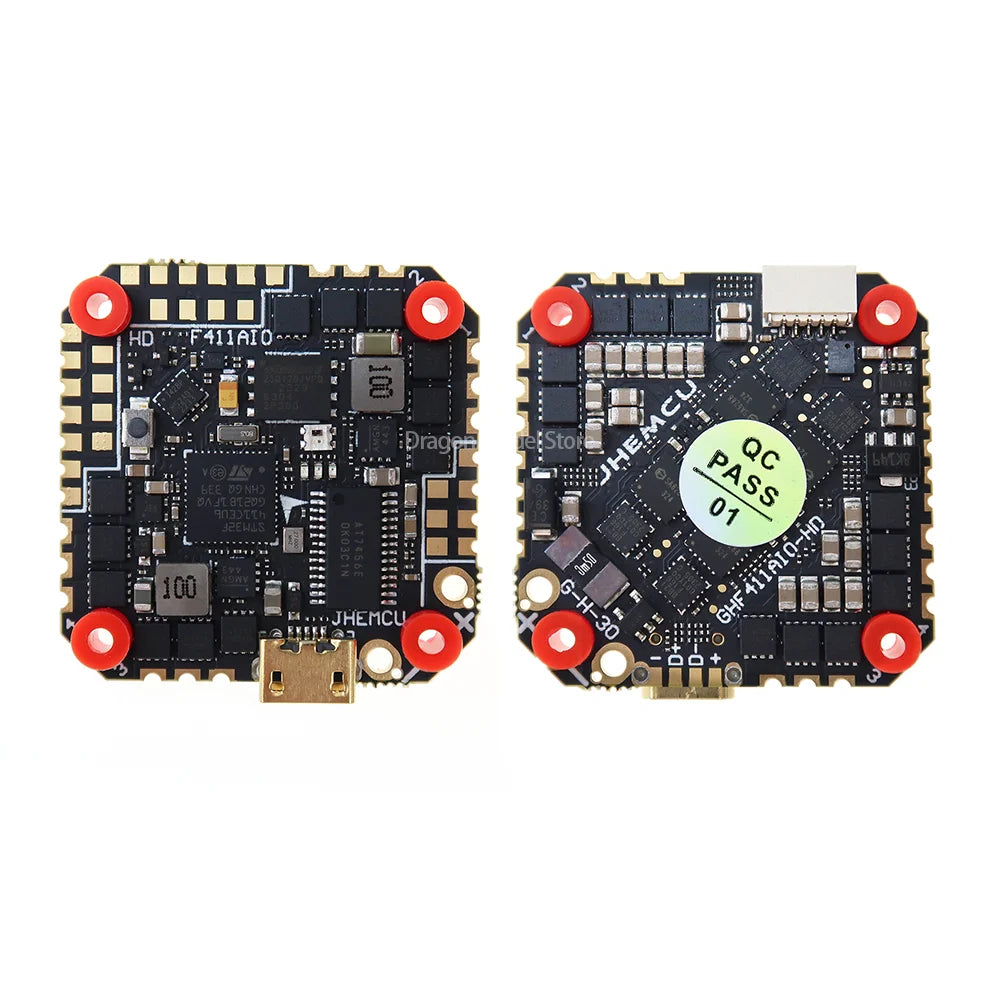

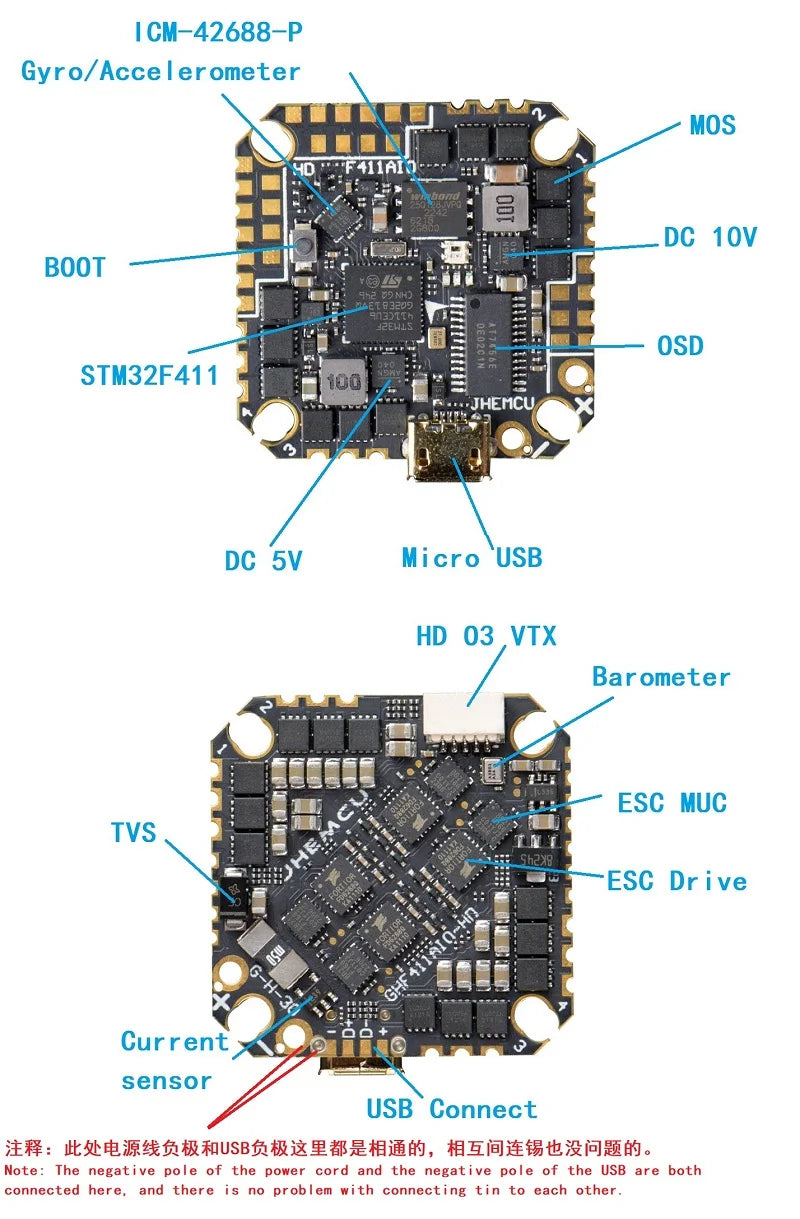

GHF411AIO-HD uses STM32F411+ICM-42688-P gyroscope to achieve stable flight performance, with built-in 5V/2.5A, 10V/2A BEC, OSD module, barometer, and black box.
The brushless electrical adjustment part adopts BLHELI-S 8-bit MCU with built-in TVS module, eliminating the need for external welding of TVS module.

Brand name: JHEMCU
Model: GHF411AIO-HD
MCU: STM32F411/100MHZ
IMU: ICM-42688-P/Gyro/Accel
OSD: AT7456E
Baro: YES
Blackbox: 16MB
Input voltage: 3S-6S (11.5V-26V)
5V-BEC: 5V/2.5A ± 0.1V
10V-BEC: 10V/2A ± 0.1V
Receiver: ELRS (CRSF), TBS (CRSF), SBUS, IBUS, DSM2, DSMX
GPS: YES
Compass: YES
HD O3: YES
USART: UART1, UART2, Softserial
IIC: IIC1
Led_ Strip: YES
Buzzer: 5V
ESC signal: Dshot150, Dshot300, Dshot600
USB: Micro USB
Current port: YES
Voltage sensor: YES
DFU button: YES
FC Firmware: betaflight_ 4.4.2 JHEF411HD.HEX (This firmware is not compatible with the previous JHEF411)

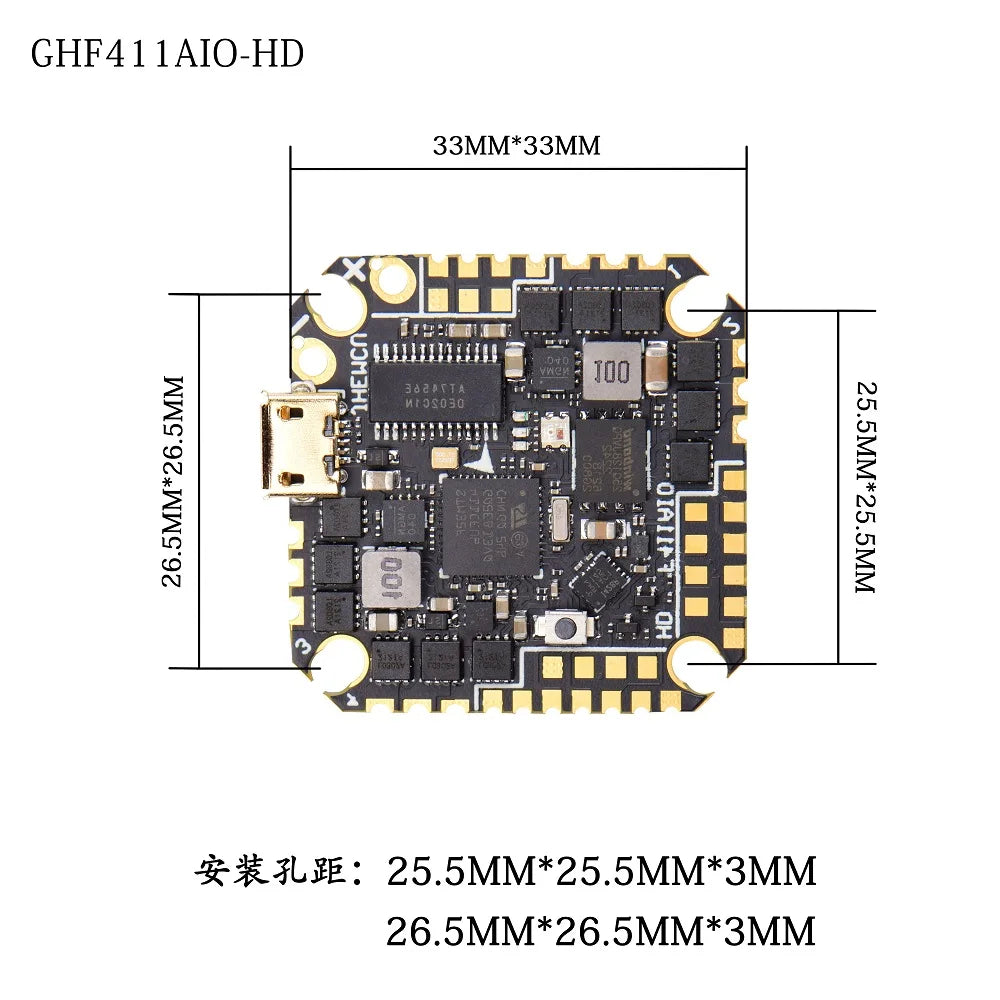

Size: 33 * 33MM
Mounting Hole: 25.5 * 25.5 * 3MM
26.5 * 26.5 * 3MM
Weight: 7.6g
ESC Current: 40A
ESC MCU: EFM8BB21
ESC TYPE: Blheli_ S
ESC Firmware: G_ H_ 30_ 48_ V0.19.2. HEX (bluejay)

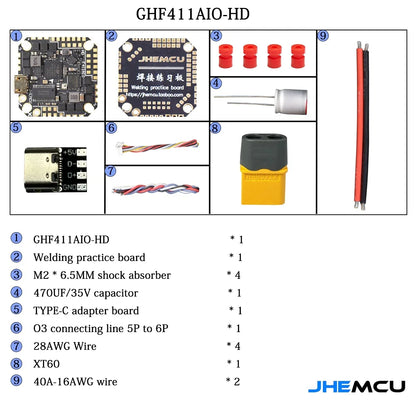

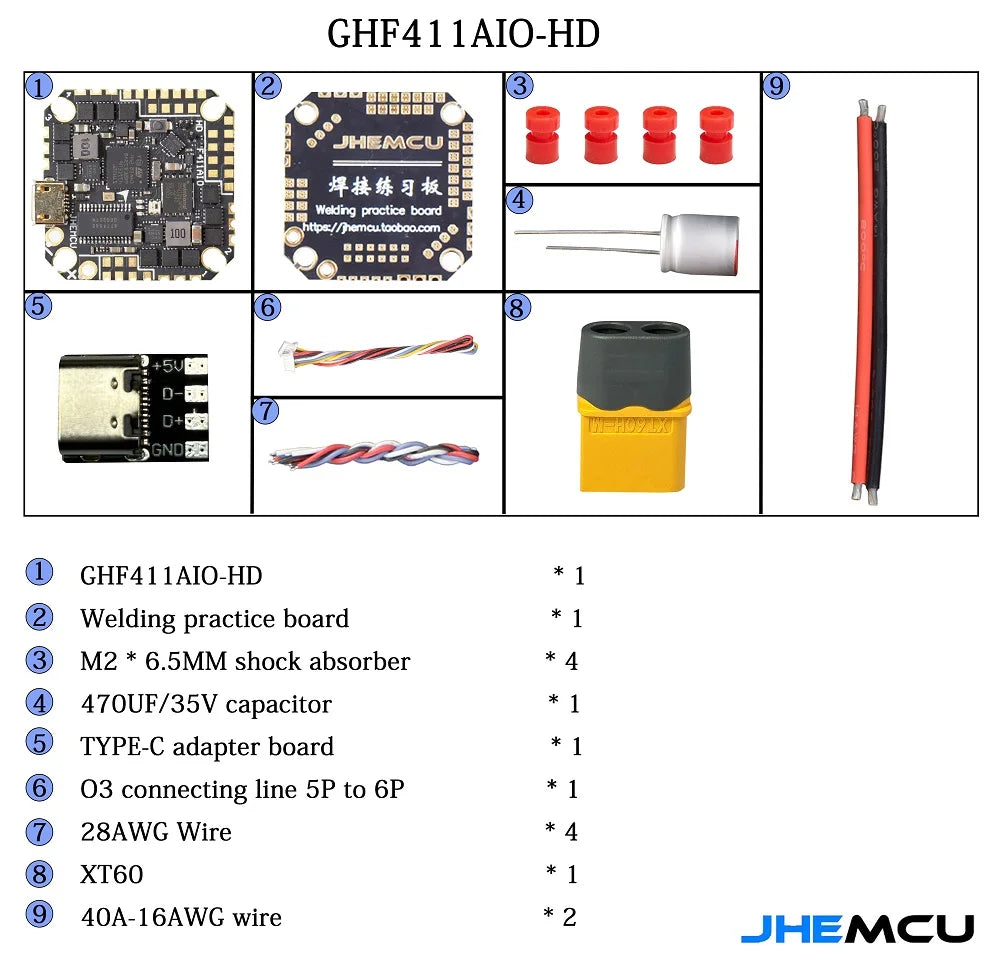

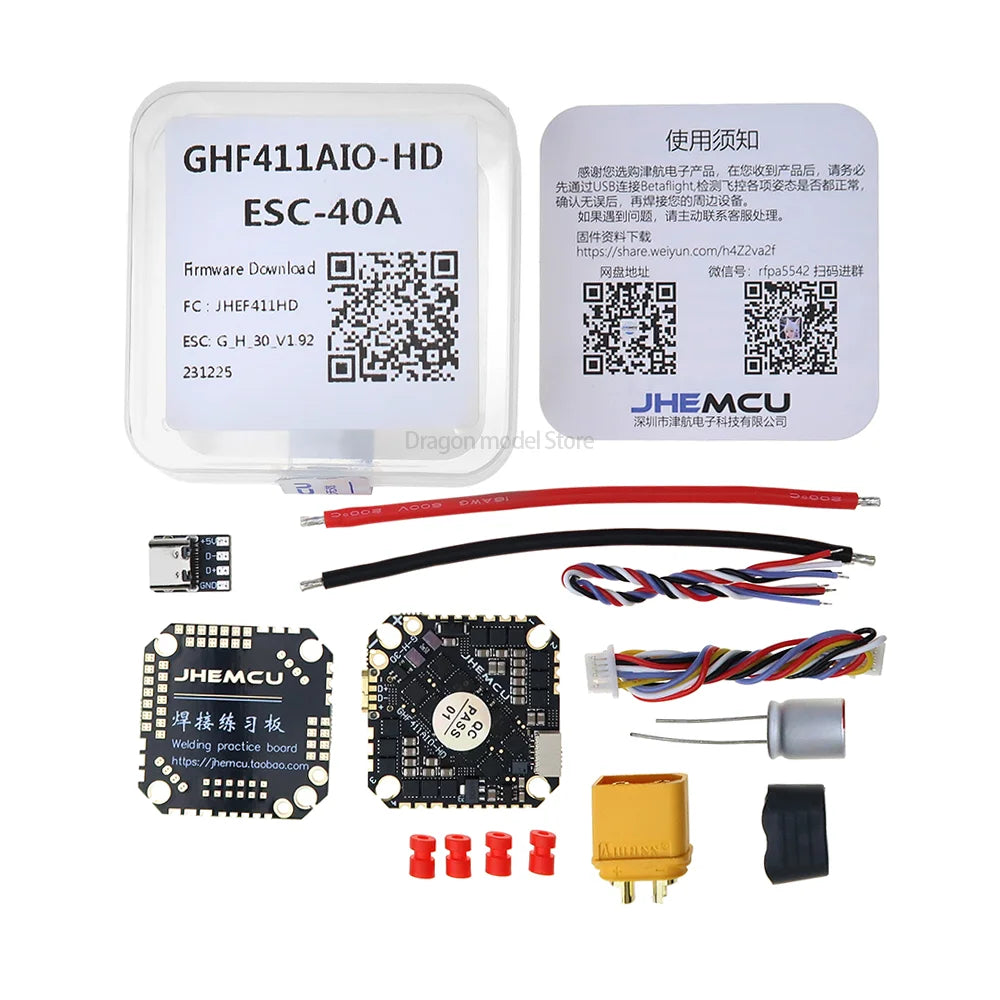

Packaging List:
GHF411AIO-HD * 1
XT60 * 1
M2 * 6.5MM shock absorber * 4
40A-16AWG wire * 2
O3 connecting line 5P to 6P * 1
470UF/35V capacitor * 1
TYPE-C adapter board * 1
28AWG Wire * 4
Welding practice board * 1
