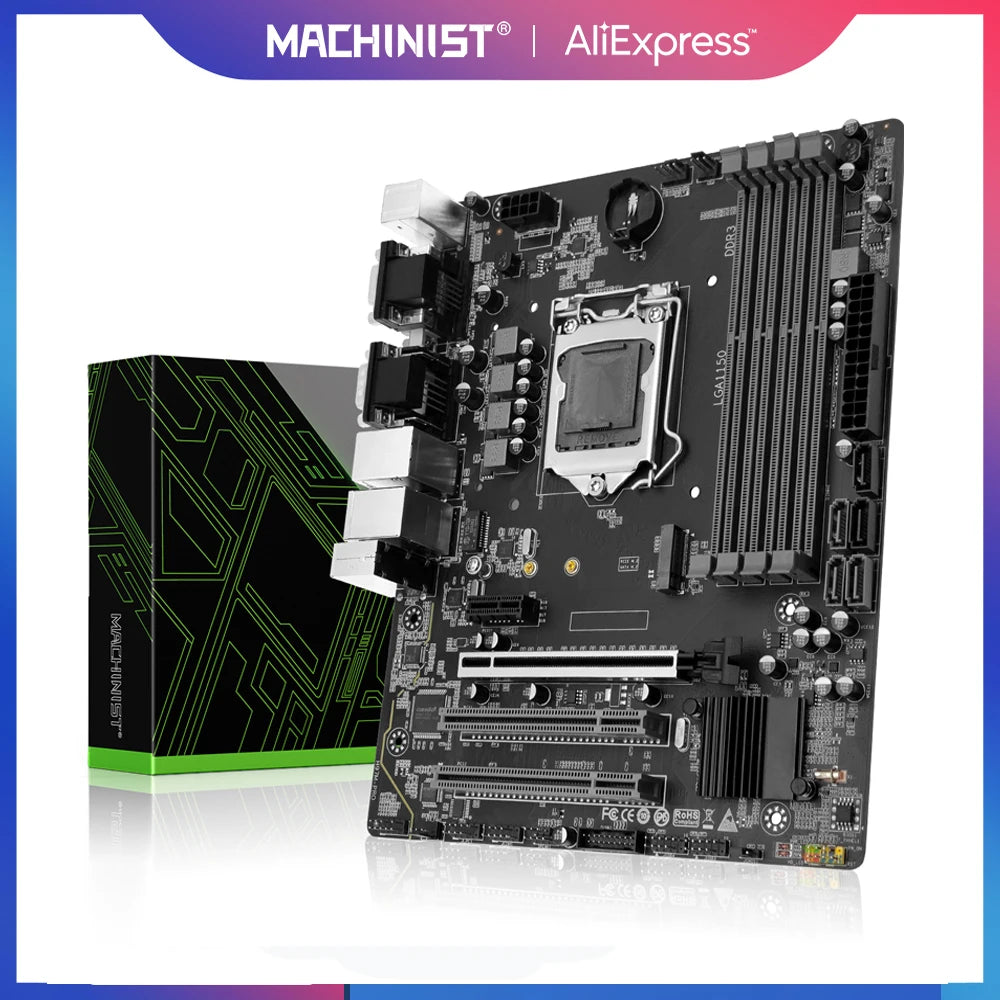

MACHINIST H97 Motherboard LGA 1150 Support Intel Pentium/Core/5th Gen Xeon CPU Processor DDR3 RAM Desktop Memory SSD M.2H97M-PRO
MACHINIST H97 Motherboard LGA 1150 Support Intel Pentium/Core/5th Gen Xeon CPU Processor DDR3 RAM Desktop Memory SSD M.2H97M-PRO
Couldn't load pickup availability
Ship 10 -15 days
Safe Payment
- 24/7 Support
Worldwide Ship
Trusted Partner
Return & refund
30-day guarantee
We understand that ordering internationally can feel like a risk. That's why we offer a 30-day guarantee on your purchase. If your item arrives damaged or isn't what you expected, you can easily request a return for a full refund within 30 days of receipt. Don't worry—we make the process simple and stress-free.
Shipping & Delivery
Processing Time: We ship your order within 1 business day after payment is confirmed.
Shipping From: Our warehouse is located in Yiwu City, Zhejiang Province, China.
Transit Time: Please allow 10-15 business days for delivery after shipment. Times may vary.
Carrier: We ship via USPS for reliable service to your door.
Tracking: Once your order ships, you will receive a confirmation email with your USPS tracking number. You can track your package directly on the USPS website or on our own order tracking page.

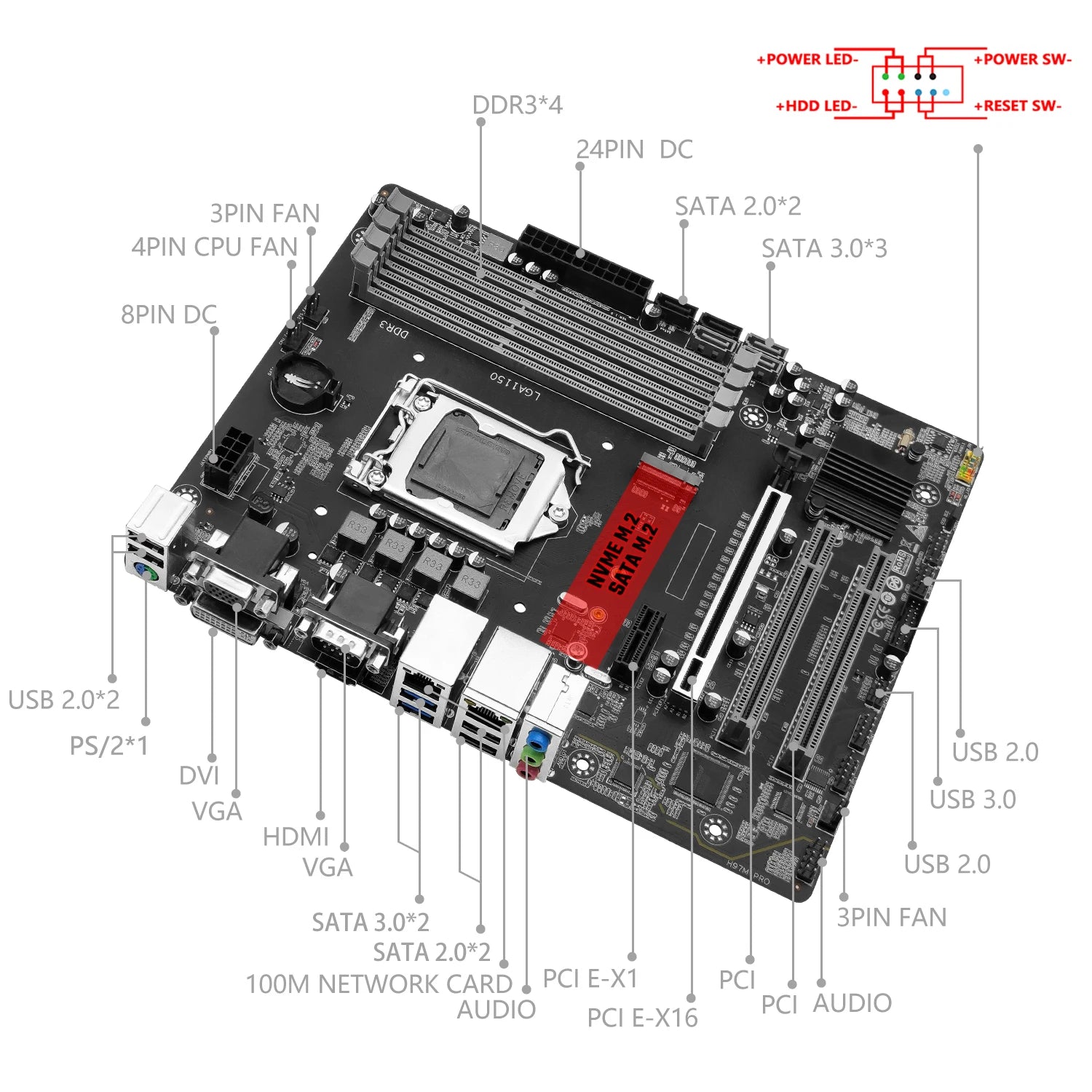

SPECIFICATIONS
Application: Desktop

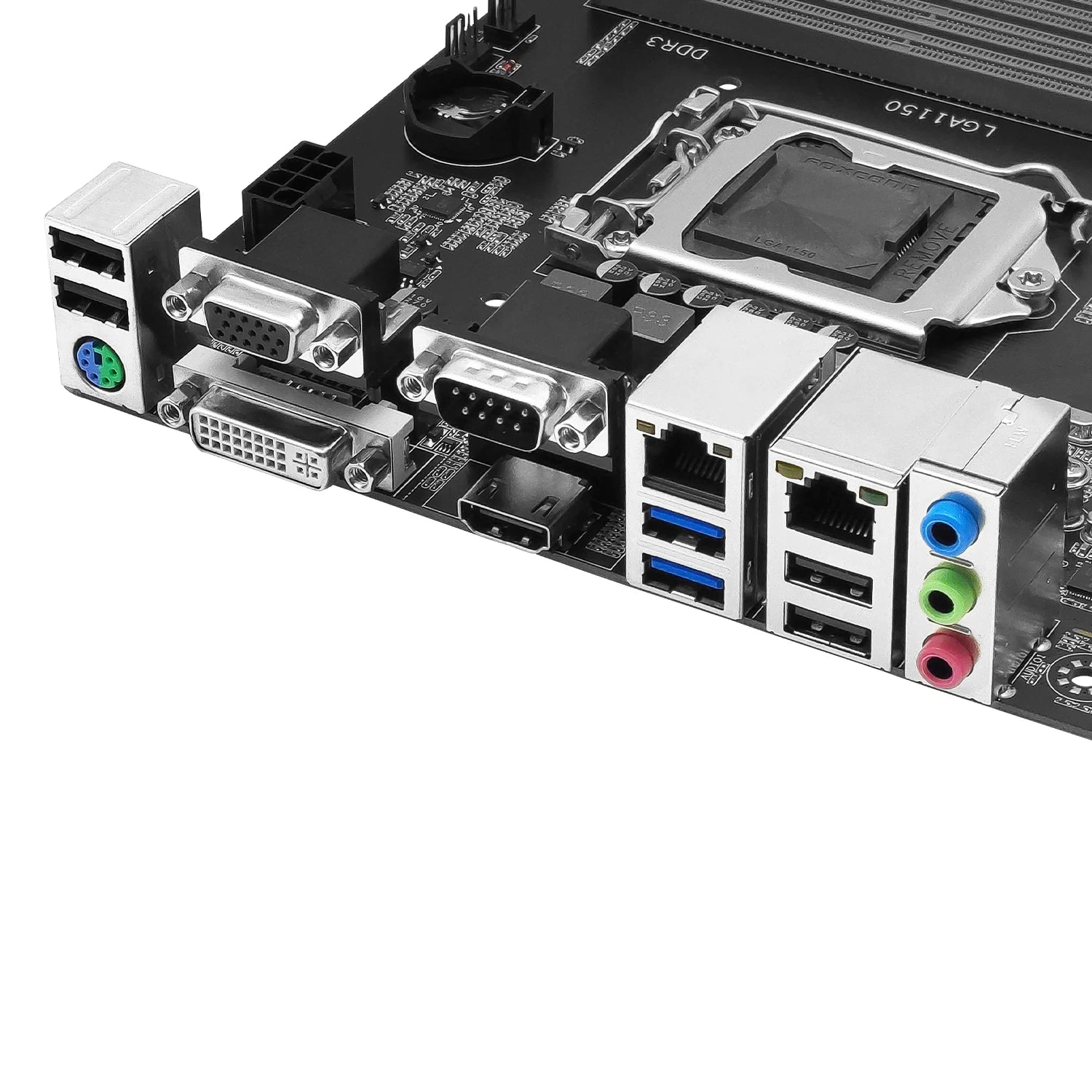

Back I/O Ports: 1x RJ45,VGA (D-Sub),PS/2 Combo,3 x Audio Jacks,HDMI 1.0,DVI-I
Battery Included: No
Brand Name: MACHINIST
Chipset: Intel H97
Chipset Manufacturer: Intel
Form Factor: CeB,others
Hign-concerned Chemical: None
Maximum Ram Capacity: 32 GB
Memory channel: Double
Number Of Memory Slots: 4
Number of M.2: 1
Number of PCI: 2
Number of PCIe x 1: 1
Number of PCIe x 16: 1
Number of SATA Ports: 4
Onboard LAN: 1x RJ45
Origin: Mainland China
PCI - E standards: PCI-E 3.0
Package: Yes
Processor compatibility: Intel Core
Quality Certification: ce,ROHS
RAID Supported: No
Socket Type: LGA1150
Special Features: None
Storage Interface Type: SATA 3,M.2 (NVMe)
Support Memory Type: DDR3
Support USB Type: USB 2.0,USB 3.0
Supports M.2 SSD: 2280
Usage Scenario: Gaming,Audio & Video,Office,Video Production,Mini PC,others
With CPU: No
Please note! Regarding customs clearance in Brazil, the customs recently conducted strict inspections. Low declaration will lead to failure of customs clearance. So we will declare according to the actual value of the product. If there are taxes, please actively cooperate to pay them. If you can't take them, don't buy! ! !
Feature:
support M.2 NVME SSD
High compatibility for a higher experience.
All solid capacitors, fine workmanship, professional stability.
Specification:
Motherboard model: H97M-PRO
Chipset: H97
Model: MACHINIST
Condition: Full new
CPU socket: LGA 1150
Structure:M-ATX
CPU supported: Intel series with LGA 1150 socket(Supports Intel Core, Pentium, Fourth/Fifth Generation and Xeon processors)
Memory socket: 4*DDR3
Max memory supported: 4*8G DDR3
Memory type supported: 800/1280/1333/1600/1866mhz
Integrated video card: yes(Requires processor to support integrated display)

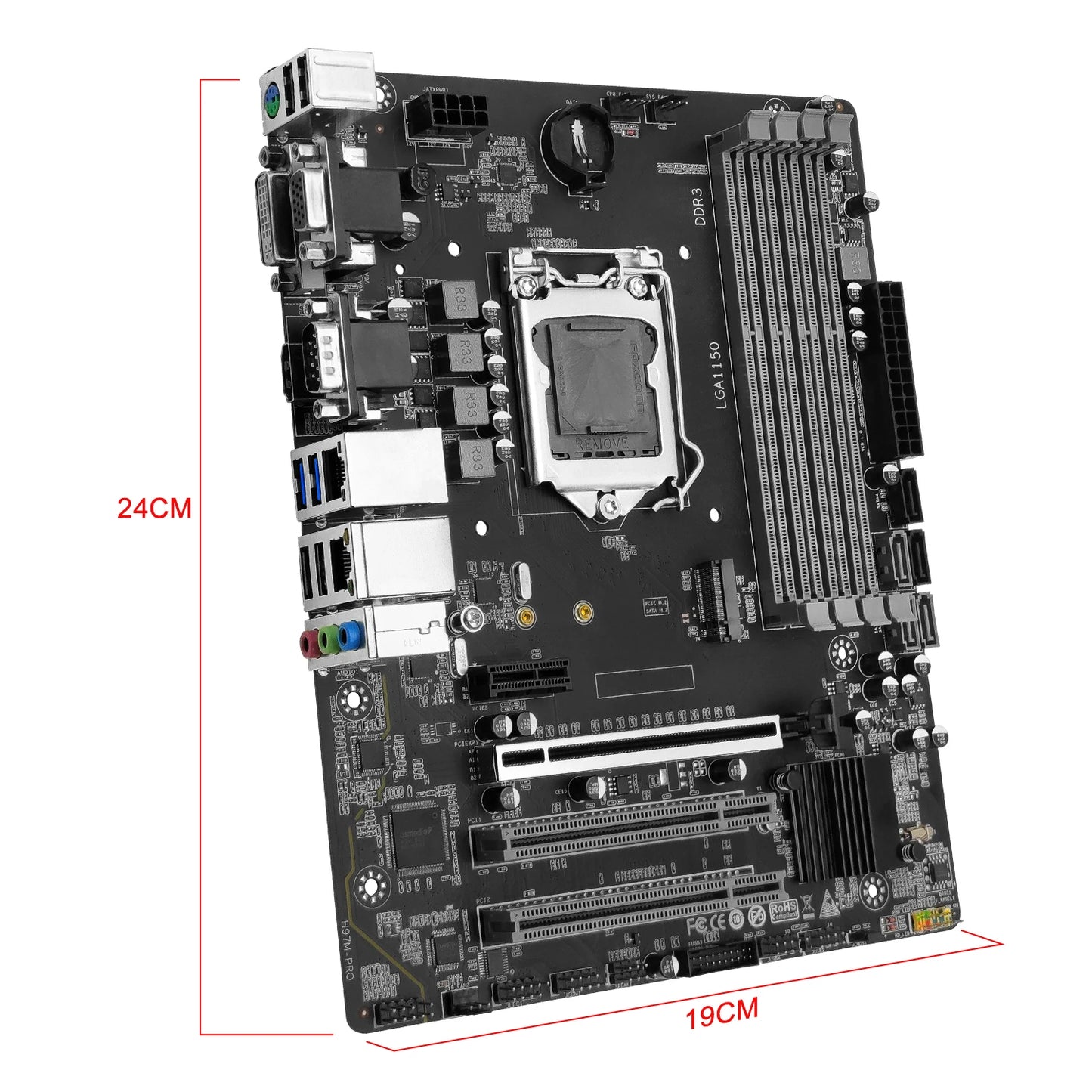

Motherboard dimension: 24*19CM
Motherboard weight(including package): 0.7kg or so
Note:
1:The color of the bottom plate of the slot may vary from batch to batch, but it will not affect the use of the product. The product is constantly optimized and upgraded.
2:Please allow 1-3mm differs due to manual measurement.
3:Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
4:This planform needs powerful power supply. please make sure your power supply can enough to supports this planform.(at least 500w brand power supply)
5:The battery in motherboard photos will be removed before shipping, as battery is forbidden at CN post and custom.
For Customs duties problem , pls make sure you can solve the customs clearance problems by yourself, if you can't solve it, we don't advise you to buy goods in our store. We are not responsible for customs duties. Thanks for your kindly understanding.
