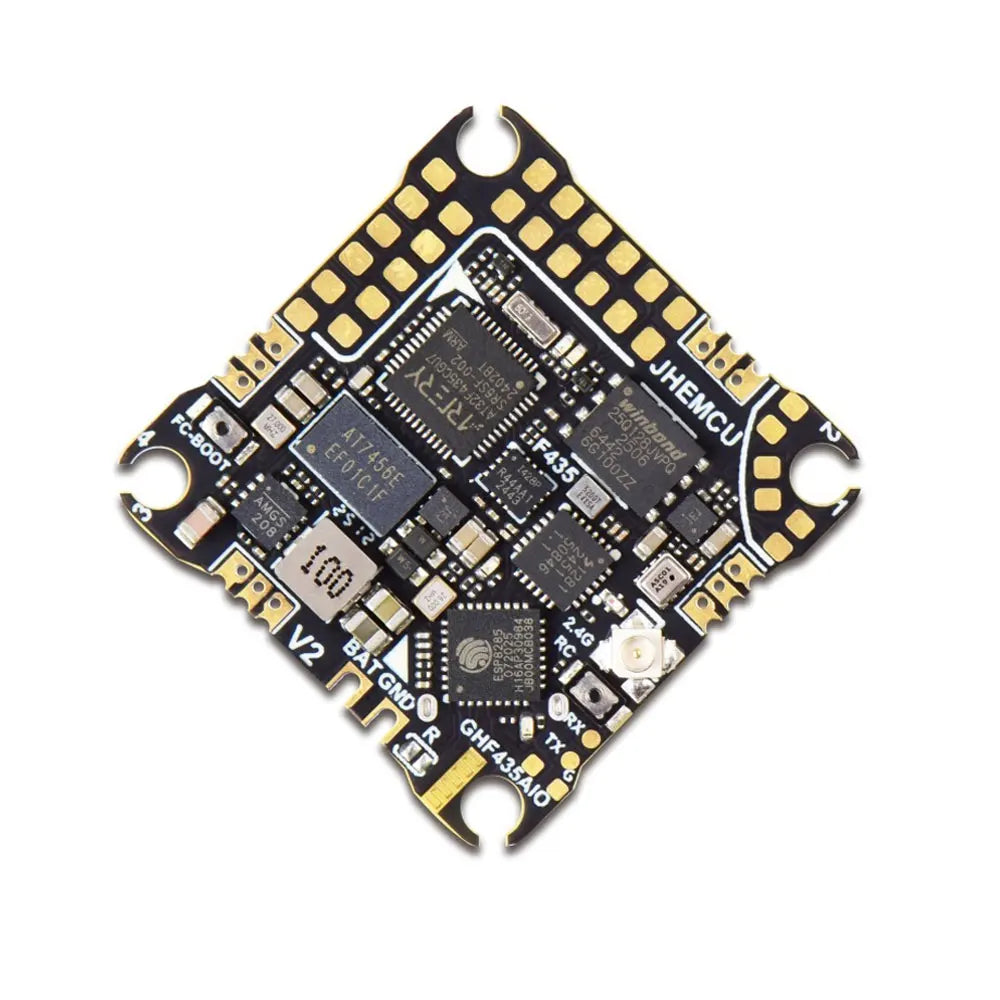

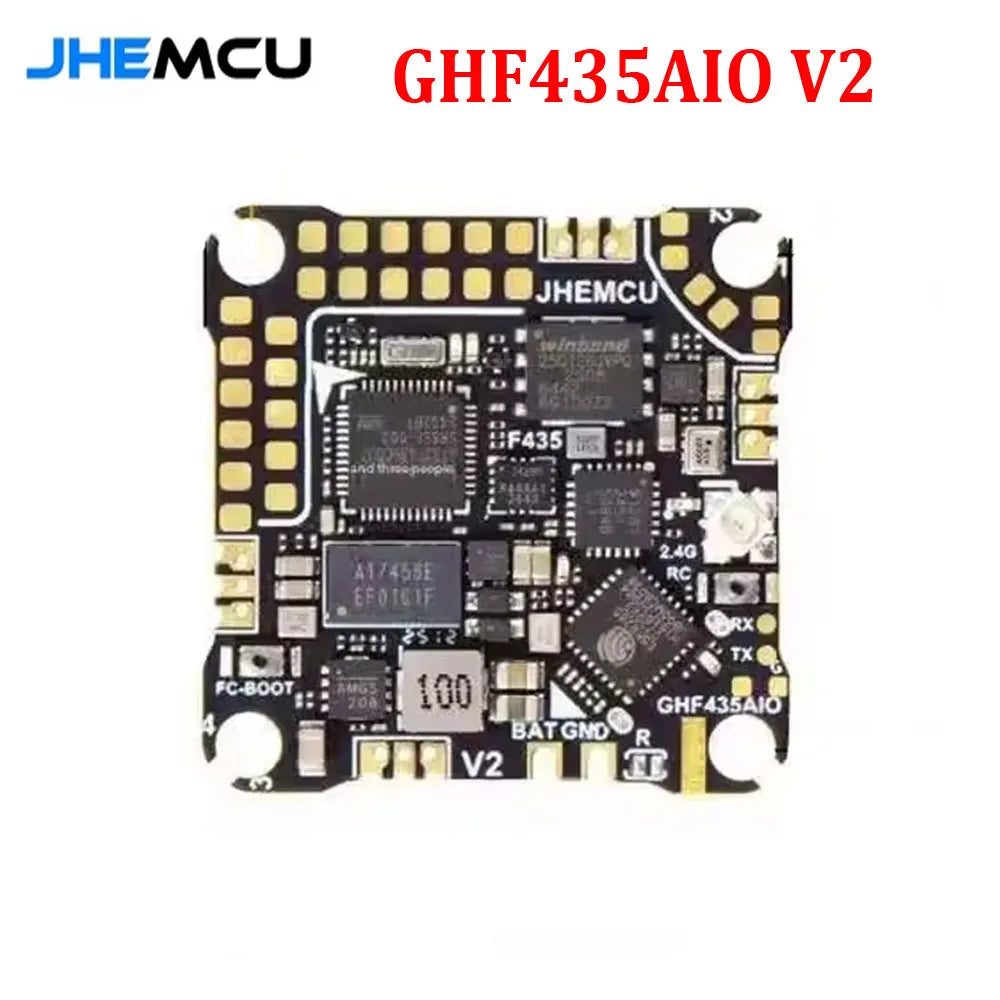

JHEMCU GHF435AIO V2 20A Flight Controller 2-4S with OSD Baro Blackbox Built-in ELRS 2.4G Receiver for RC FPV Freestyle Drone
JHEMCU GHF435AIO V2 20A Flight Controller 2-4S with OSD Baro Blackbox Built-in ELRS 2.4G Receiver for RC FPV Freestyle Drone
Couldn't load pickup availability
Ship 10 -15 days
Safe Payment
- 24/7 Support
Worldwide Ship
Trusted Partner
Return & refund
30-day guarantee
We understand that ordering internationally can feel like a risk. That's why we offer a 30-day guarantee on your purchase. If your item arrives damaged or isn't what you expected, you can easily request a return for a full refund within 30 days of receipt. Don't worry—we make the process simple and stress-free.
Shipping & Delivery
Processing Time: We ship your order within 1 business day after payment is confirmed.
Shipping From: Our warehouse is located in Yiwu City, Zhejiang Province, China.
Transit Time: Please allow 10-15 business days for delivery after shipment. Times may vary.
Carrier: We ship via USPS for reliable service to your door.
Tracking: Once your order ships, you will receive a confirmation email with your USPS tracking number. You can track your package directly on the USPS website or on our own order tracking page.
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Assemblage
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Composite Material
Model Number: JHEMCU GHF435AIO V2
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Flight Controller
Recommend Age: 14+y
Remote Control Peripherals/Devices: Remote Controller
Size: NA
Technical parameters: KV1100
Tool Supplies: Assembled class
Upgrade Parts/Accessories: Flight Controller
Use: Vehicles & Remote Control Toys
Wheelbase: Bottom Plate
Specifications

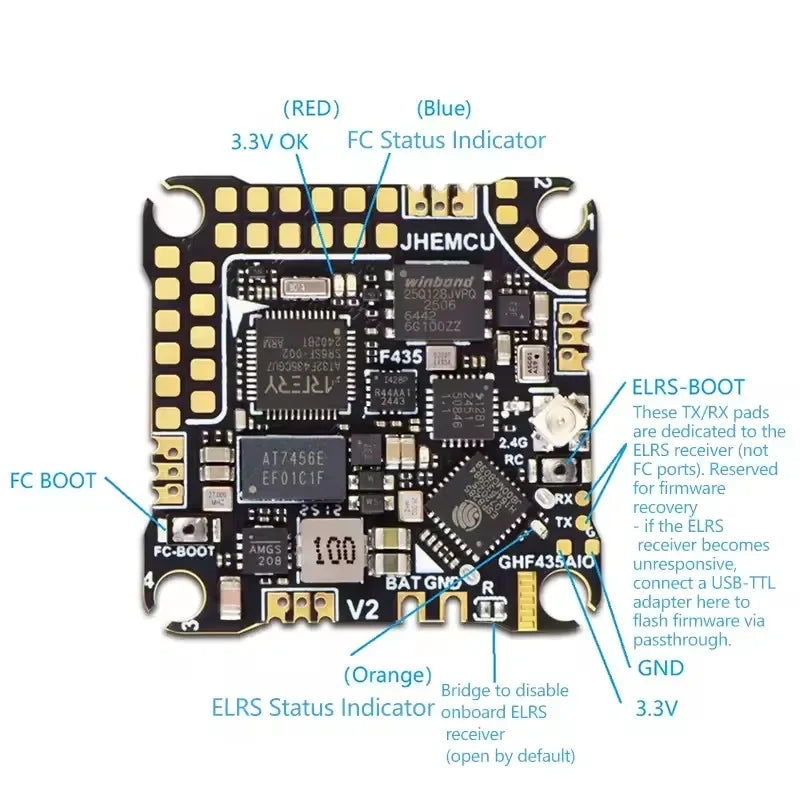

Brand name:JHEMCU
Model:GHF435AIO V2
MCU:AT32F435CG/288MHZ
IMU:ICM-42688-P/Gyro/Accel
OSD:AT7456E
Baro:YES
Blackbox:16MB
Input voltage:2-4S (7.4V-17V)
5V-BEC:5V/2.5A±0.1V
UART:UART1，UART2，UART3，UART5
Receiver:ELRS(CRSF), TBS(CRSF) ,SBUS,IBUS
LED-strip:WS2812
Buzzer:YES(5V)
GPS:YES
Compass:YES
HD O3:YES

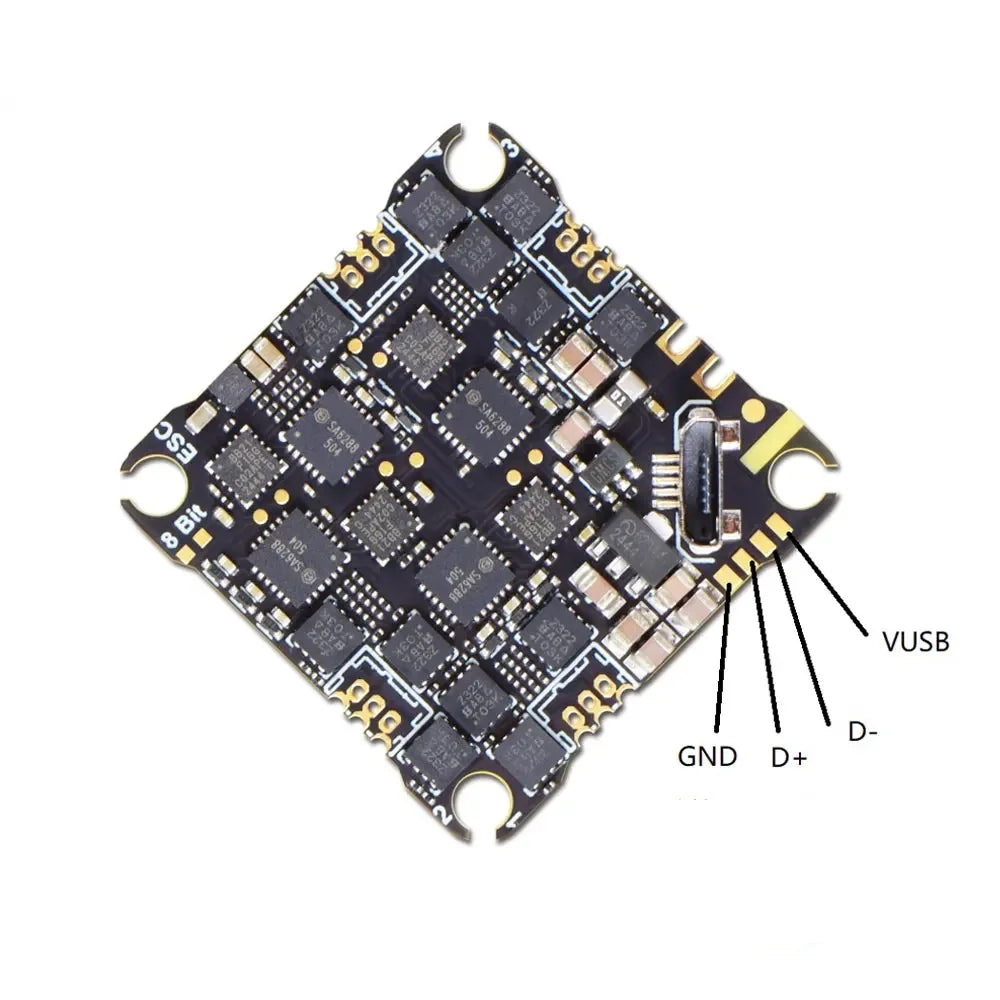

USB:Micro USB
Current port:YES
Voltage sensor:YES
DFU button:YES
FC Firmware:Betaflight JHEF435

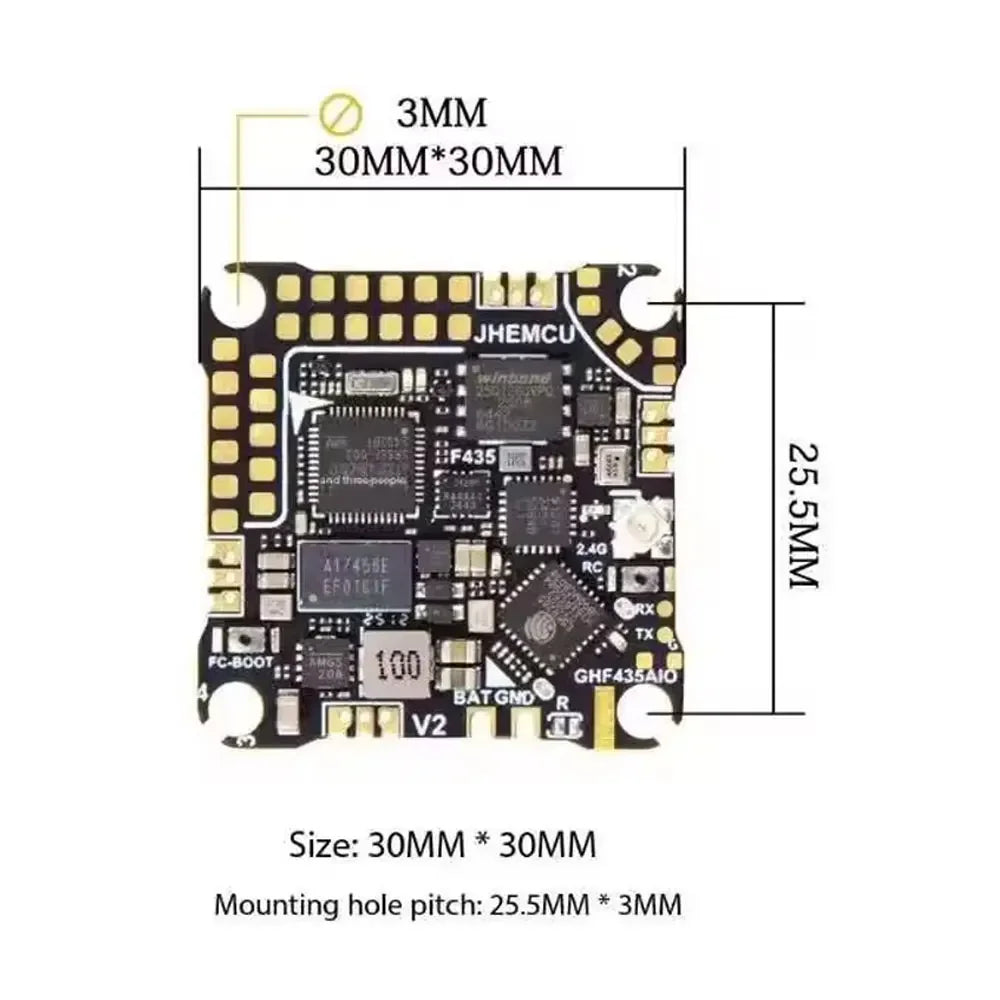

Size:30*30MM
Mounting Hole:25.5*25.5*3MM
Weight:5g

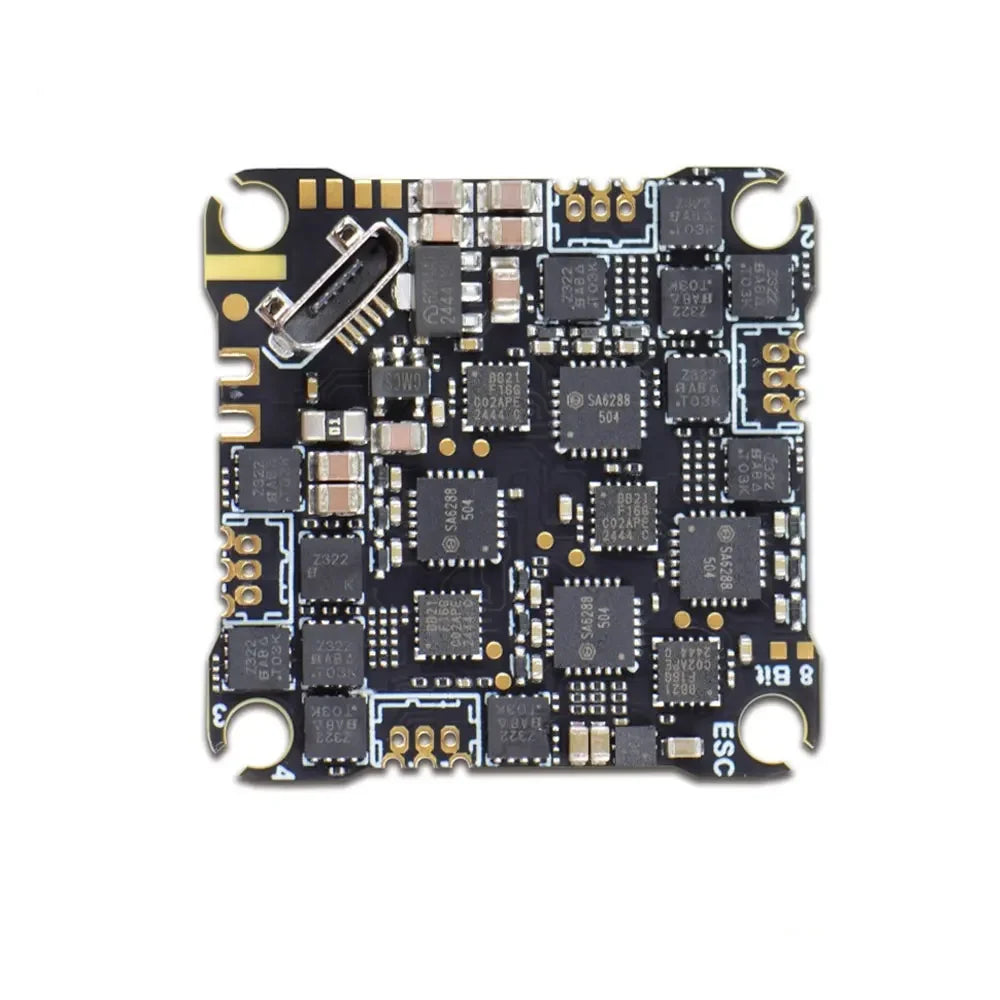

ESC Current:20A
ESC MCU:EFM8BB21F16G
ESC TYPE:BlueJay
ESC Firmware:G-H-30
ESC protocol:Dshot150, Dshot300, Dshot600.
Receiver Type:ELRS
Receiver frequency:2.4GHZ
Receiver Signal Protocol:CRSF
Receiver firmware:betafpv.rx_2400.lite.
WIFI firmware update:YES
Independent receiver:YES
