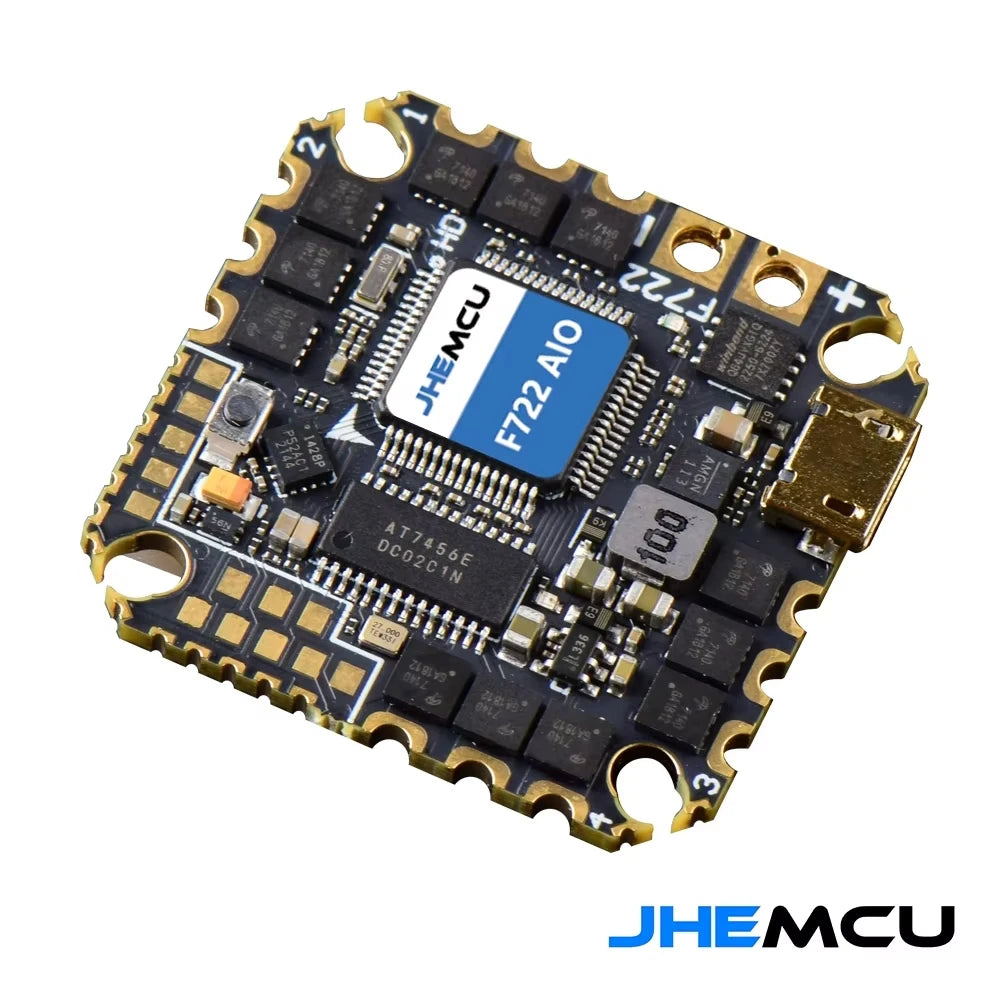

JHEMCU GHF722AIO-HD 40A AIO Flight Control ESC All-in-One 2-6S For FPV Freestyle CinewhoopFPV Racing Traversing Machine

$71.38 USD

$71.38 USD ~~$71.38 USD~~

Sale Sold out

Color: GHF722AIO-HD FC

GHF722AIO-HD FC

Ships From: CHINA

CHINA

Quantity

Ship 10 -15 days
Safe Payment
24/7 Support
Worldwide Ship
Trusted Partner
Return & refund

30-day guarantee

We understand that ordering internationally can feel like a risk. That's why we offer a 30-day guarantee on your purchase. If your item arrives damaged or isn't what you expected, you can easily request a return for a full refund within 30 days of receipt. Don't worry—we make the process simple and stress-free.

Shipping & Delivery

Processing Time: We ship your order within 1 business day after payment is confirmed.

Shipping From: Our warehouse is located in Yiwu City, Zhejiang Province, China.

Transit Time: Please allow 10-15 business days for delivery after shipment. Times may vary.

Carrier: We ship via USPS for reliable service to your door.

Tracking: Once your order ships, you will receive a confirmation email with your USPS tracking number. You can track your package directly on the USPS website or on our own order tracking page.

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

For Vehicle Type: Airplanes

Hign-concerned Chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: Composite Material

Model Number: GHF722AIO-HD

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Speed Controllers

Recommend Age: 14+y

Remote Control Peripherals/Devices: ESC

Use: Vehicles & Remote Control Toys

The original GHF722AI0-1CM is discontinued, the new replacement model is GHF722A10-HD.

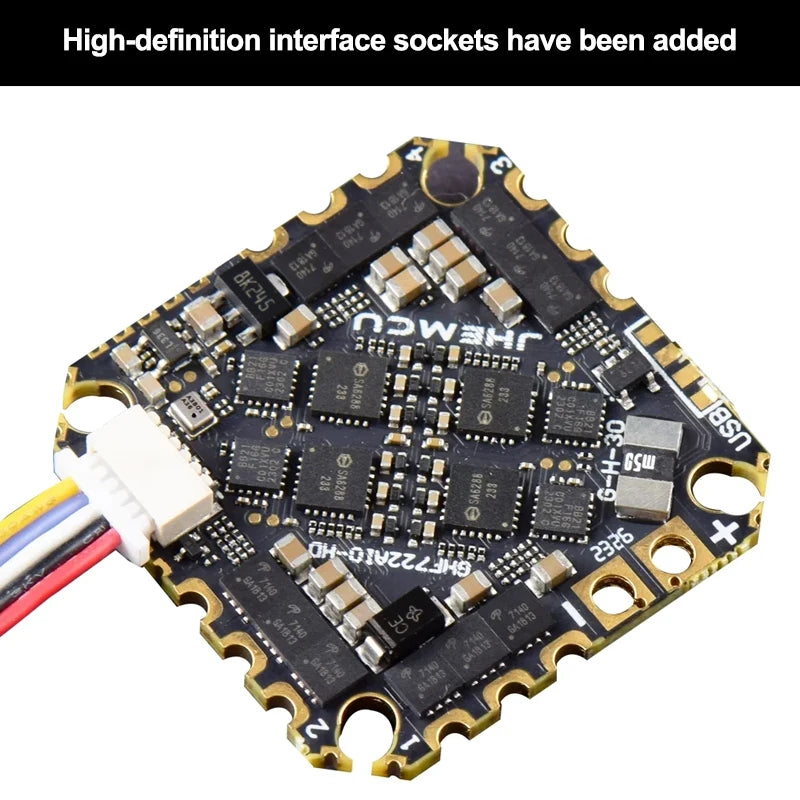

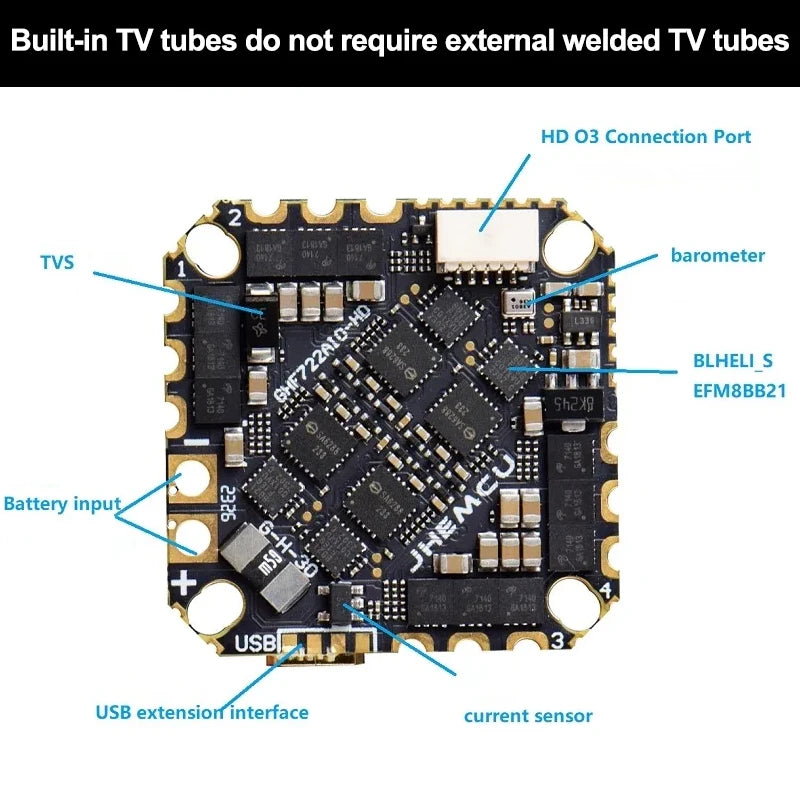

The difference between the old version and the original is the addition of HD high-definition interface socket (can be directly plugged into the O3 Air Unit), increased external USB pads, built-in TVS tube without external welding TVS tube, re-layout of the ESC part of the layout, other basic no change.

Model: GHF722AIO-HD

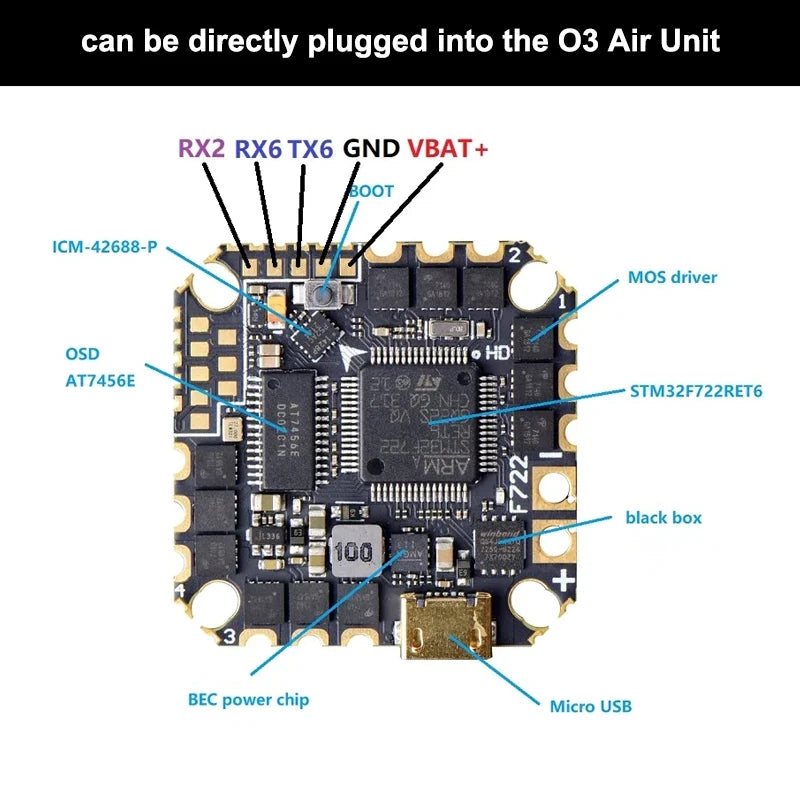

Main Control: STM32F722RE(216MHZ)
Gyroscope: ICM-42688-P
Barometer: Yes
OSD Chip: AT7456E
Black Box: 8MB
LED Programming: Support
BB Rattle: Support
Input Voltage: 2-6S
I2C Interface: Support
BEC: 5V/2.5A
Camera Input: Support
USART: UART1,UART2,UART3,UART4,UART5,UART6
Flight control firmware: betaflight_4.4.2_JHEF7DUAL.HEX
ESC Current: 40A * 4
Ammeter: Yes
Firmware: Bluejay G-H-30.HEX (48K)
Whether to support BLHELI S: Yes
Default ESC driver protocol for flight control: DSHOT600
Mounting hole spacing: 25.5-26.5MM*3MM
Maximum external size: 33*33MM
Weight: 7.6g

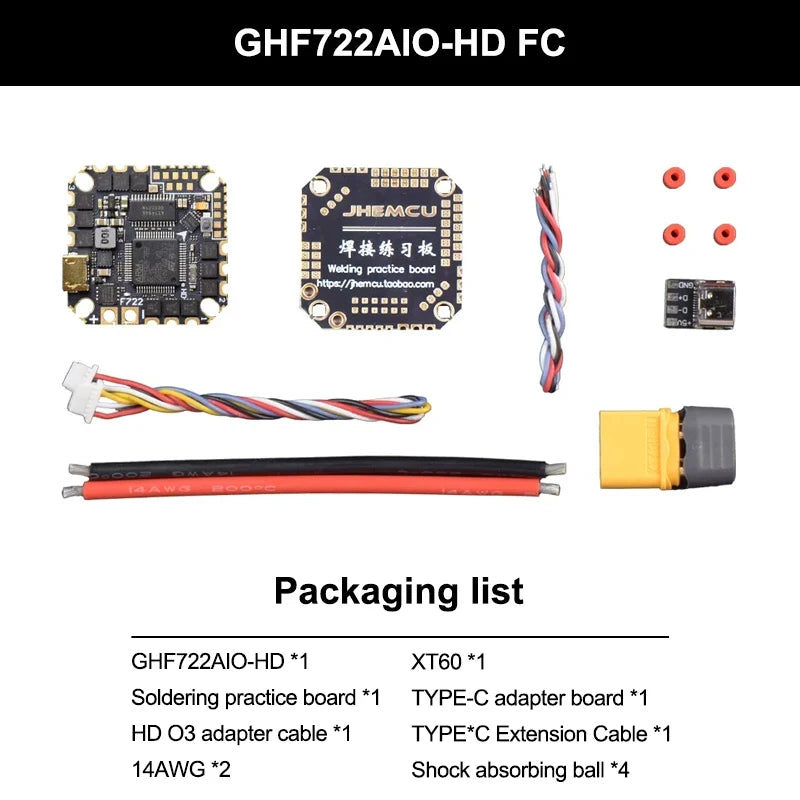

Packing List.
GHF722AIO-HD *1
Soldering practice board *1
HD O3 adapter cable *1
14AWG *2
XT60 *1
TYPE-C adapter board *1
TYPE*C Extension Cable *1
Shock absorbing ball *4

Note:Betaflight firmware below 4.3.0 is not supported.
