RC RS2205 2205 2300KV CW CCW Brushless Motor for 2-6s 20A/30A/40A ESC FPV RC QAV250 X210 Racing Drone Multicopter
RC RS2205 2205 2300KV CW CCW Brushless Motor for 2-6s 20A/30A/40A ESC FPV RC QAV250 X210 Racing Drone Multicopter
Couldn't load pickup availability
Ship 10 -15 days
Safe Payment
- 24/7 Support
Worldwide Ship
Trusted Partner
Return & refund
30-day guarantee
We understand that ordering internationally can feel like a risk. That's why we offer a 30-day guarantee on your purchase. If your item arrives damaged or isn't what you expected, you can easily request a return for a full refund within 30 days of receipt. Don't worry—we make the process simple and stress-free.
Shipping & Delivery
Processing Time: We ship your order within 1 business day after payment is confirmed.
Shipping From: Our warehouse is located in Yiwu City, Zhejiang Province, China.
Transit Time: Please allow 10-15 business days for delivery after shipment. Times may vary.
Carrier: We ship via USPS for reliable service to your door.
Tracking: Once your order ships, you will receive a confirmation email with your USPS tracking number. You can track your package directly on the USPS website or on our own order tracking page.
SPECIFICATIONS
Brand Name: QYWWRC
For Vehicle Type: Airplanes
Four-wheel Drive Attributes: Motors
Hign-concerned Chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Metal
Model Number: RS2205 2300KV
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: Motors
Recommend Age: 14+y
Remote Control Peripherals/Devices: Motor
Size: RS2205 2300KV
Technical parameters: Value 5
Tool Supplies: motor
Upgrade Parts/Accessories: motor
Use: Vehicles & Remote Control Toys
Wheelbase: Upper Shell

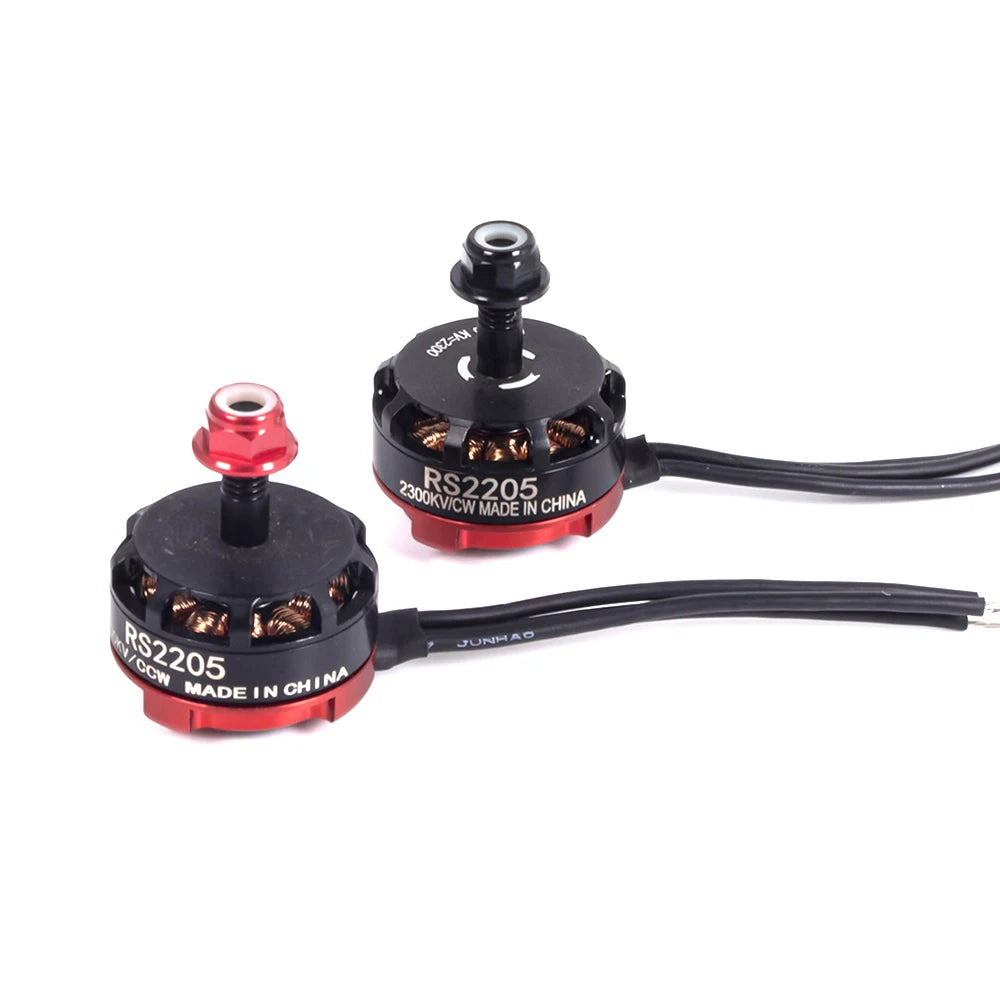

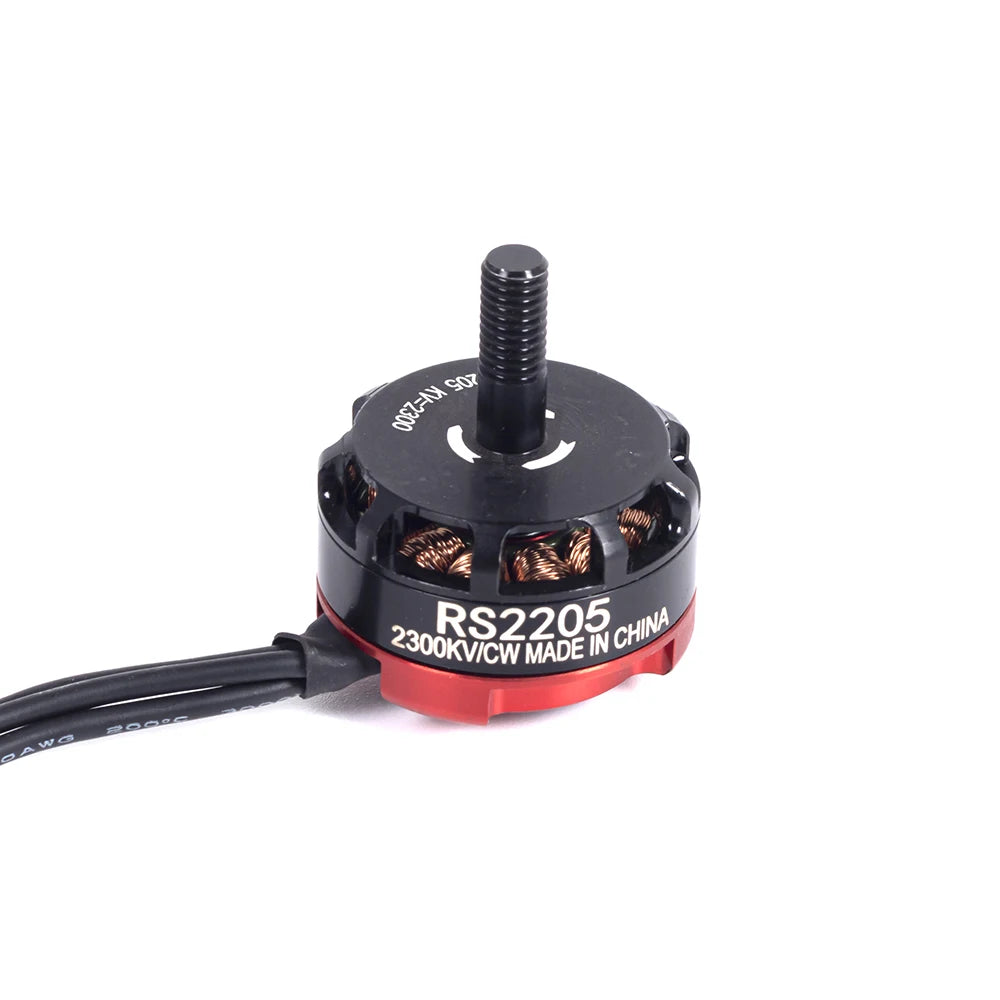

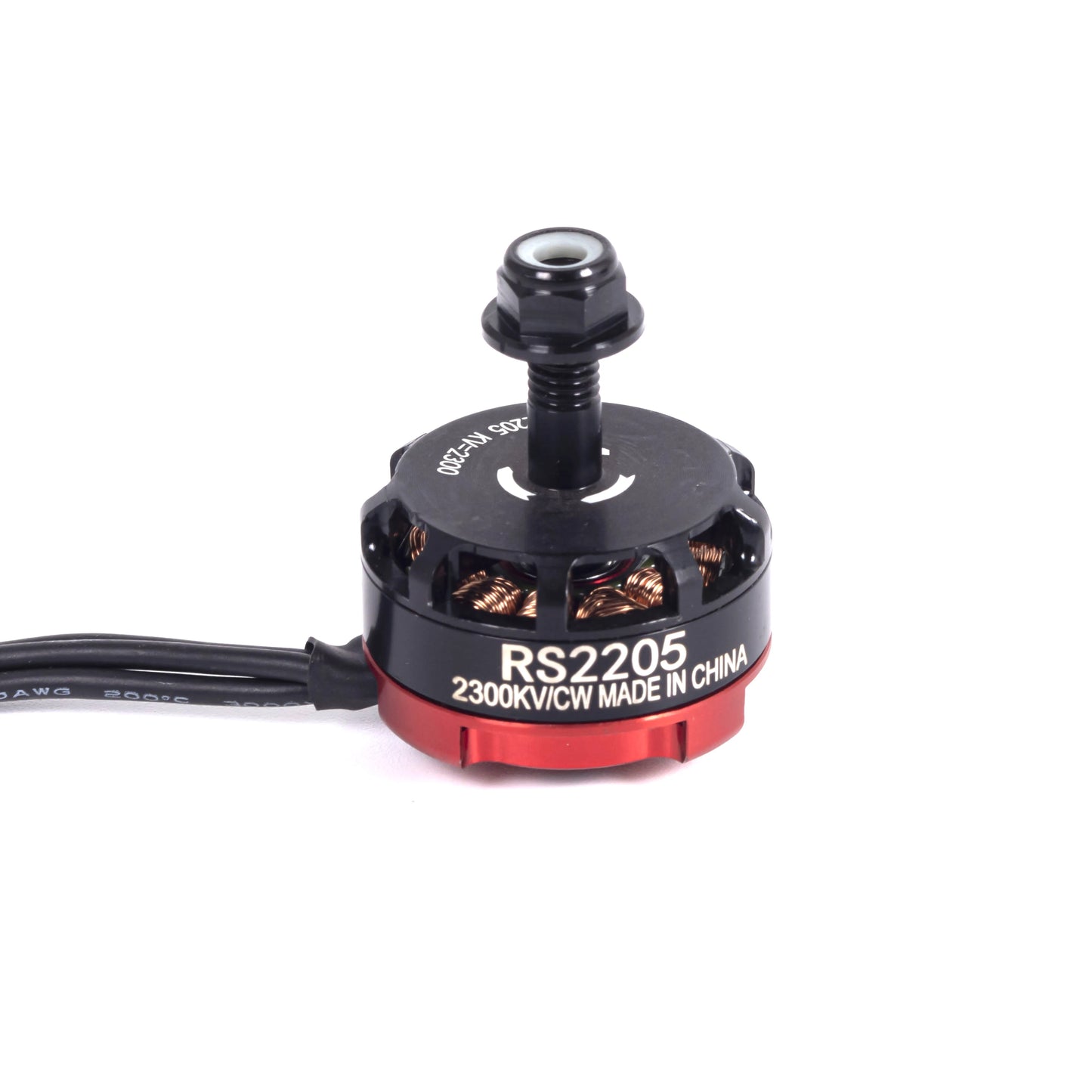

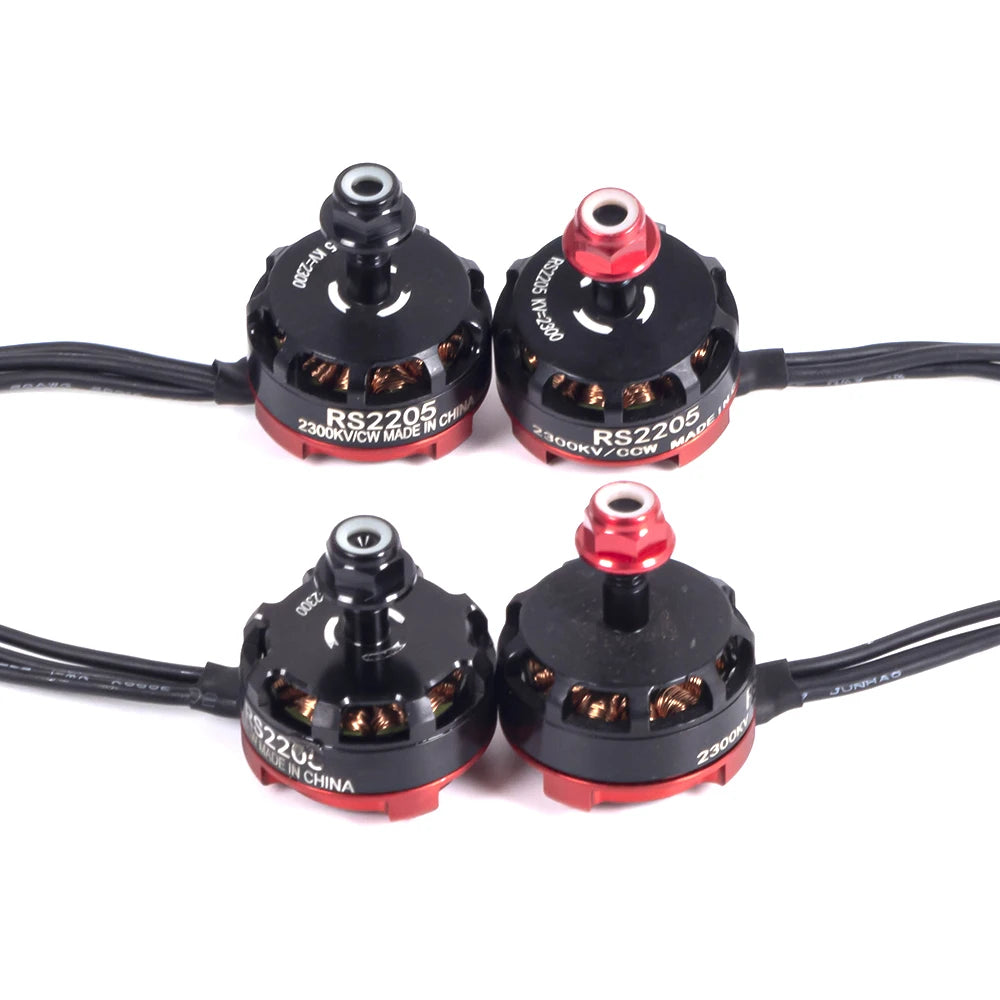

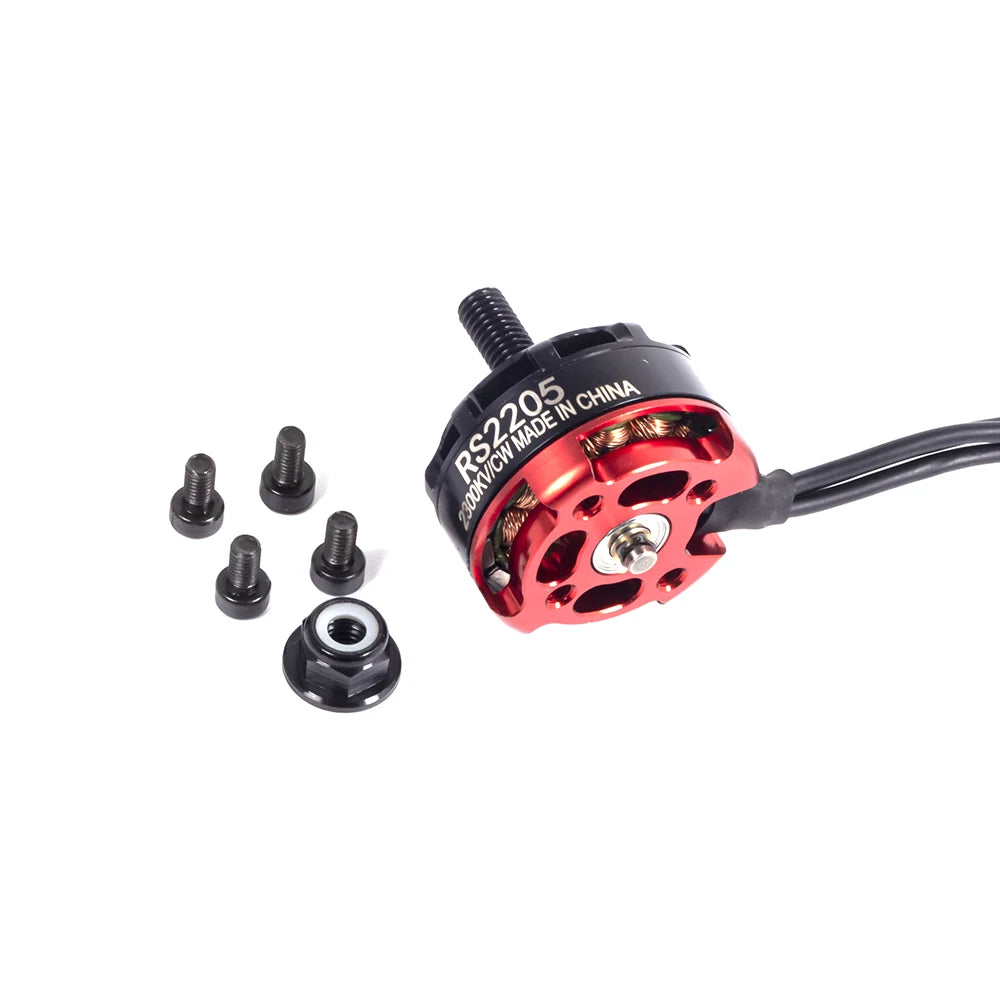

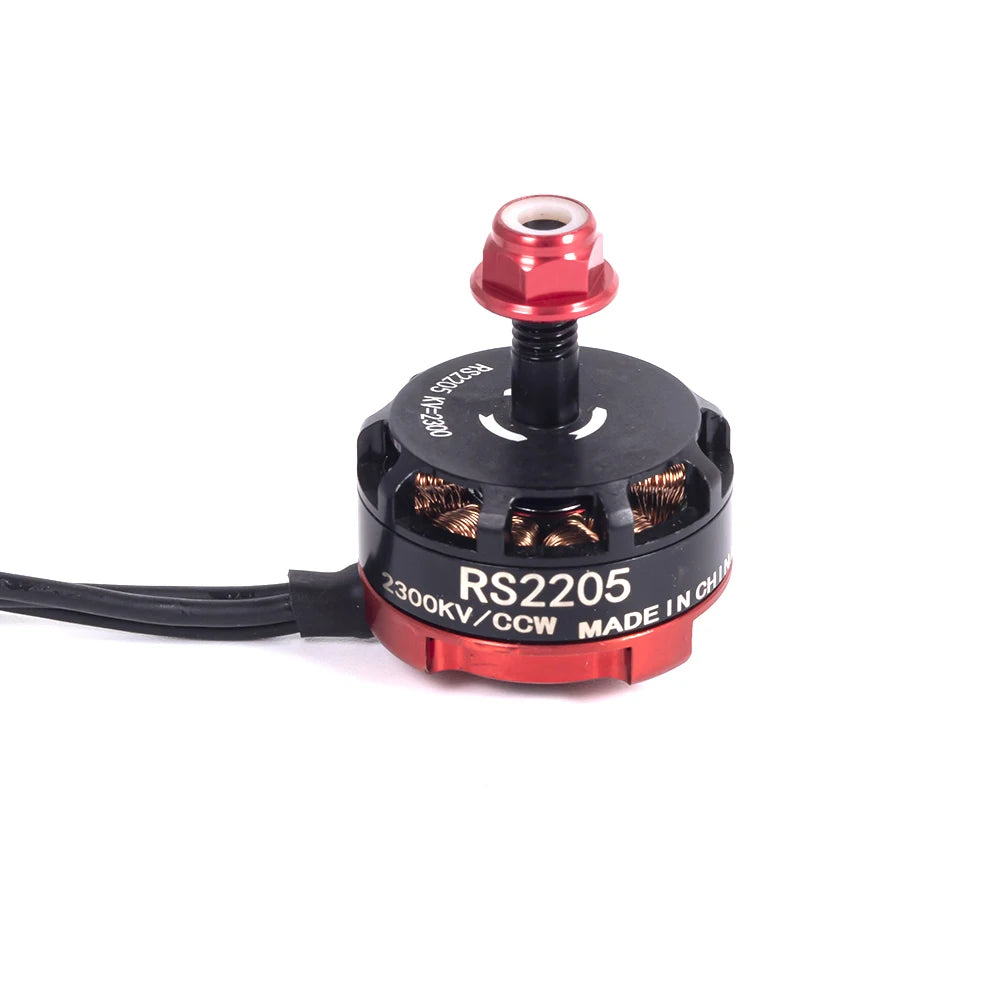

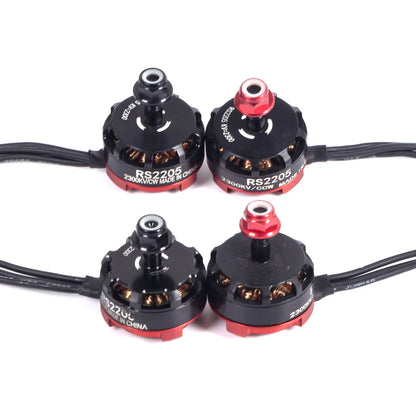

RS2205 2300kv Motor:
Model: RS2205-2300
Framework: 12N14P
No. of Cells: 3 - 4S
Length:31.7mm
Shaft: M5
KV: 2300
Max Thrust: 1024g
Diameter: 27.9mm
Propeller Suggested: HQ 5045 BN 5045XSH
Weight: 30g
Features:
1. Race Spec Performances
2. High Strength N52 Neodyum Magnets
3. Active Cooling Fins Greatly Reduce Motor Temeratures
4. Low CG, Light Weight Design
5. Japanese Bearing For Performances
6. Enchance Anti Off U Ring For Safety & Stablility
7. Dual Lock CW / CCW Locknuts

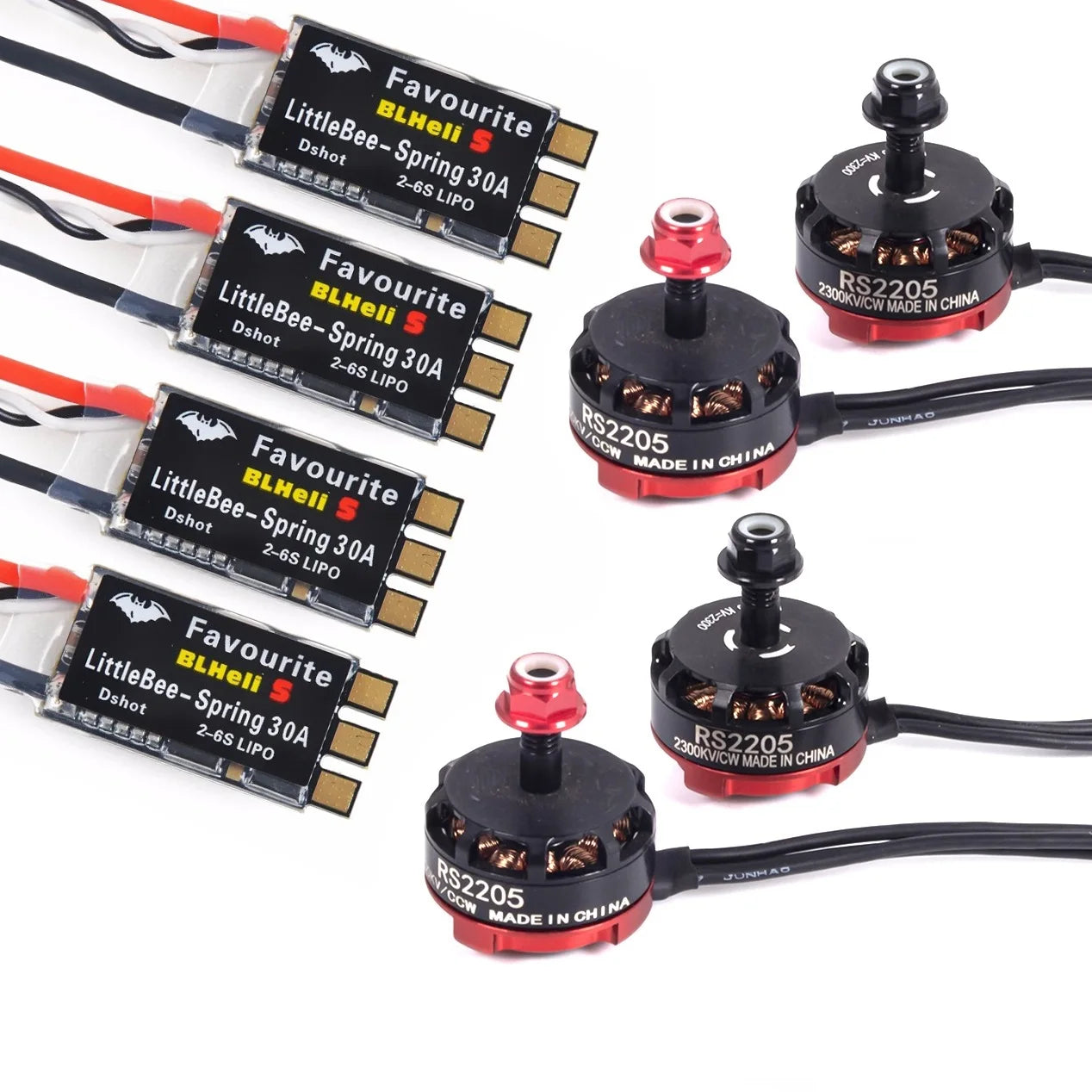

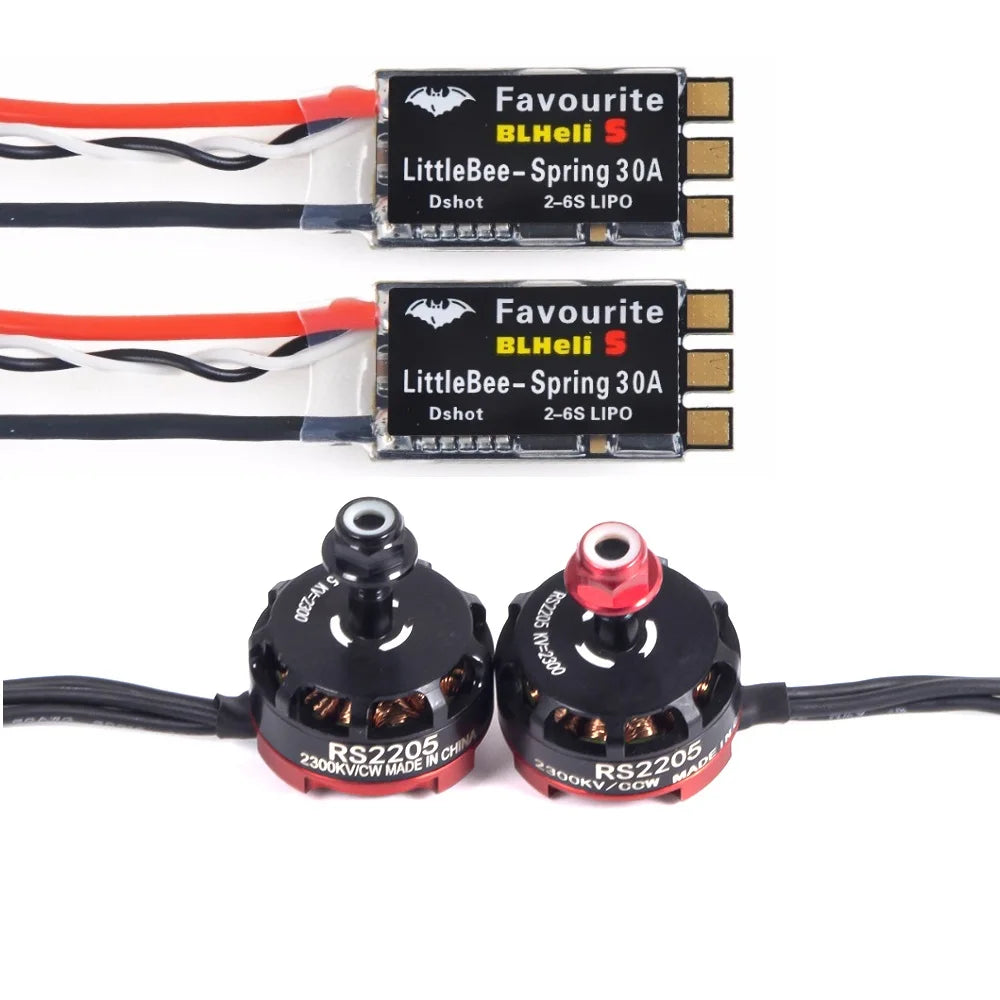

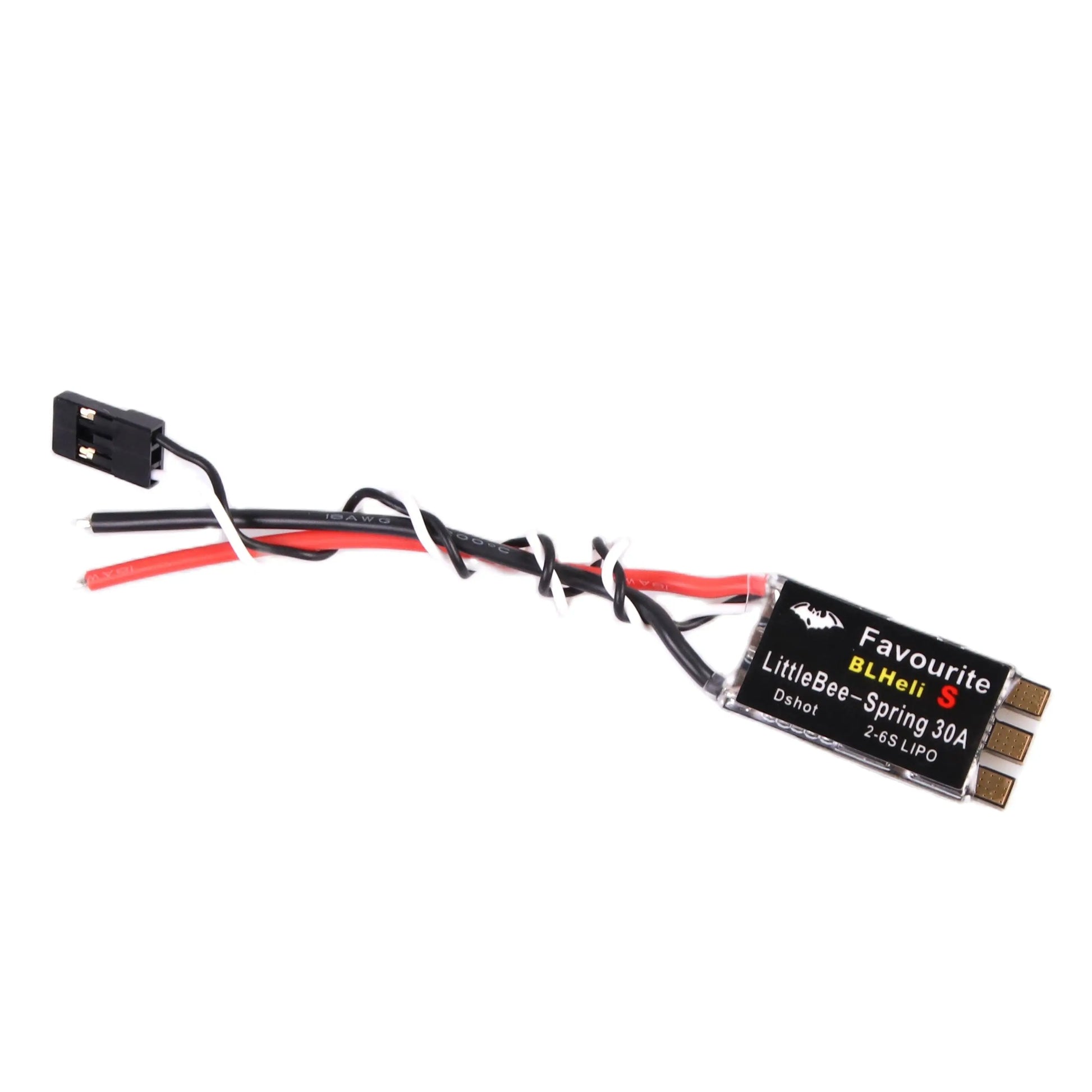

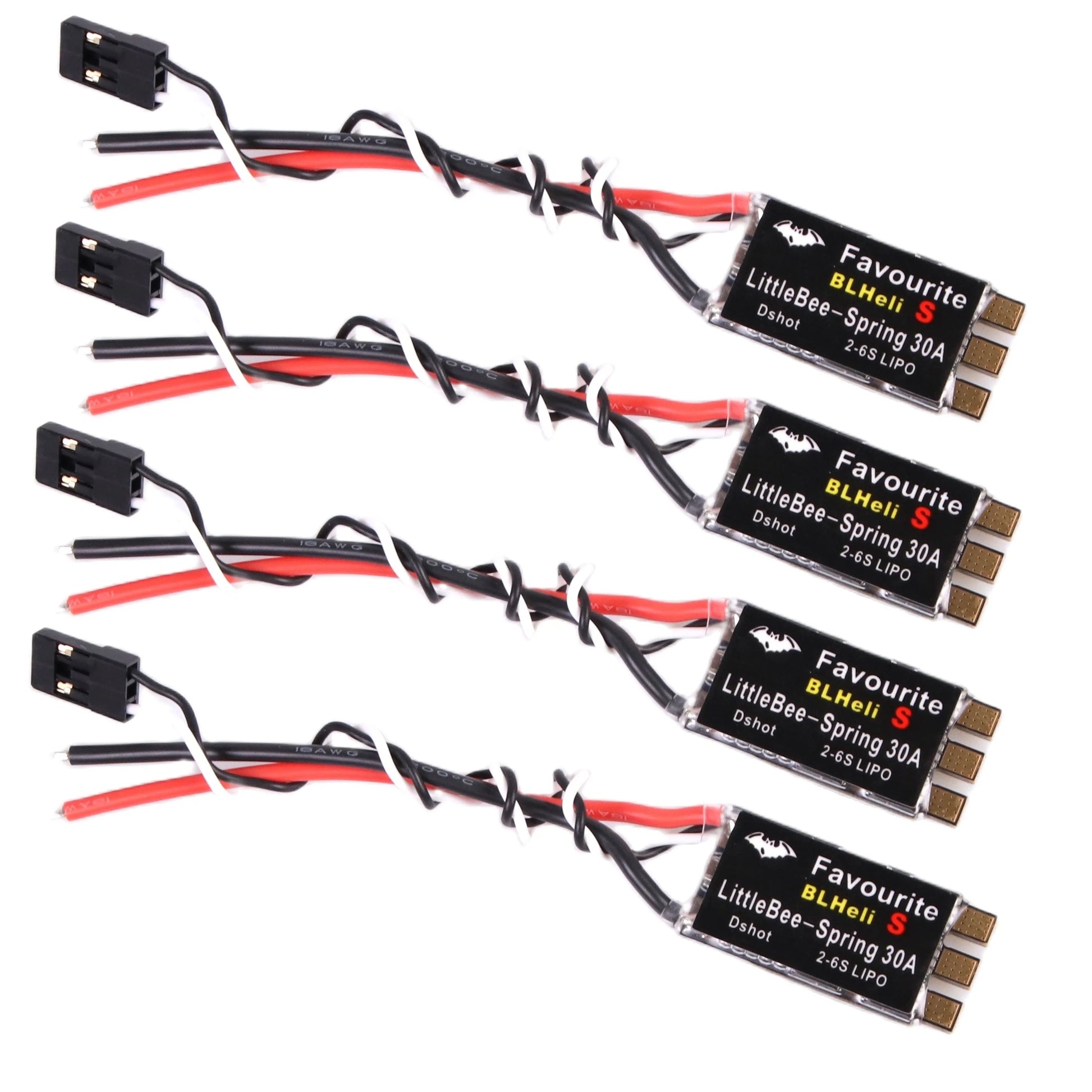

30A Description:

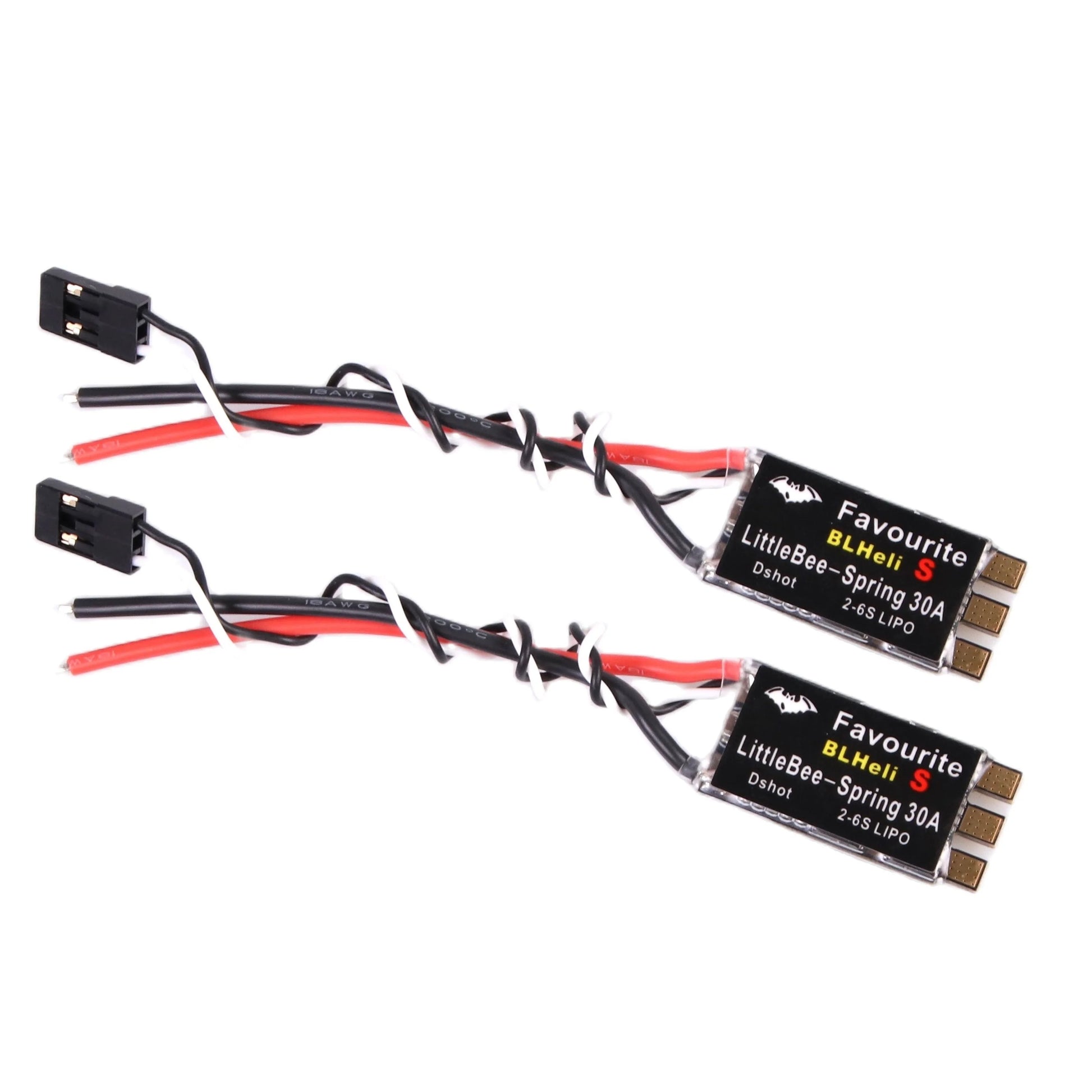

Item name: FVT LittleBee BLHeli_S SPRING 30A ESC
Input Voltage: 2-6S Lipo
BEC Output: No
Continue Current: 30A, Burst Current: 35A up to 10S
Size: 35*17mm
Weight: 9g(include Power and signal wire)
Main IC: SILABS EFM8BB21F16, MCU run 48MHz
MOS: Both low and high side fets are Nfets
Switching speed is very fast, it has dedicated driver chip
BLHeli_S Bootloader andamp; Firmware
